Classes
class	ACAPI::Tracking::v1::TrackerManager
	TrackerManager is a class to access the main tracker with. More...

class	Tracking::Tracker
	Class for managing one specific tracker and its fields. More...

class	Tracking::Tracker::HintGuard
	Helper guard class to specify a hint what to do when the editing of a field needs to be ended and possibly the reason for ending it. More...

class	Tracking::Tracker::InEditKeyboardHandler
	Class to derive from, when creating custom keyboard handlers for the tracker's edit mode. More...

class	Tracking::Tracker::RunningModeKeyboardHandler
	Class to derive from, when creating custom keyboard handlers for the tracker's running mode. More...

Typedefs
using	ACAPI::Tracking::v1::TrackerRef = std::reference_wrapper<::Tracking::Tracker >
	Reference to the type Tracking::Tracker.

typedef GS::ConstForwardIterator< ITrackerItem * >	Tracking::Tracker::ConstItemIterator
	A constant iterator to read the items of the tracker.

typedef GS::ForwardIterator< ITrackerItem * >	Tracking::Tracker::ItemIterator
	An iterator for accessing the items of the tracker.

Enumerations
enum class	Tracking::Tracker::ValueHandlingOnDeactivate { Tracking::Tracker::ValueHandlingOnDeactivate::Accept , Tracking::Tracker::ValueHandlingOnDeactivate::Reject }
	Determines what to do with the edited field's latest value when the editing of the field needs to end. More...

enum class	Tracking::Tracker::PositionHandingOnDeactivate { Tracking::Tracker::PositionHandingOnDeactivate::KeepAsItIs , Tracking::Tracker::PositionHandingOnDeactivate::RemoveFromIdealPosition }
	Determines how to relocate the tracker when the editing of the field needs to be ended. More...

Functions
Result< TrackerManager >	ACAPI::Tracking::v1::GetTrackerManager ()
	A function to create TrackerManager instance.

	Tracking::Tracker::HintGuard::HintGuard (Tracker &trackerToGuard, Hint newHint)
	Starts the scope of the hint.

	Tracking::Tracker::HintGuard::~HintGuard ()
	Finishes the scope of the hint.

Tracker &	Tracking::Tracker::InEditKeyboardHandler::GetTracker ()
	Gets the parent tracker, where the events will be handled.

virtual DG::EventHandlerResultType	Tracking::Tracker::InEditKeyboardHandler::KeyPressed (const DG::Key::Code &code, DG::Item **item) override
	Handles a regular key press event.

virtual DG::EventHandlerResultType	Tracking::Tracker::InEditKeyboardHandler::KeyPressed (const DG::Key::Modifier &modifier, DG::Item **item) override
	Handles a modifier key press event.

Tracker &	Tracking::Tracker::RunningModeKeyboardHandler::GetTracker ()
	Gets the parent tracker, where the events will be handled.

virtual DG::EventHandlerResultType	Tracking::Tracker::RunningModeKeyboardHandler::KeyPressed (const DG::Key::Code &code, DG::Item **item) override
	Handles a regular key press event.

virtual DG::EventHandlerResultType	Tracking::Tracker::RunningModeKeyboardHandler::KeyPressed (const DG::Key::Modifier &modifier, DG::Item **item) override
	Handles a modifier key press event.

void	Tracking::Tracker::ShowReturnToRunningModeButton (bool show)
	Provides the option to force hiding the Mark Position button for each field of the tracker.

void	Tracking::Tracker::RefreshSize ()
	Updates the size of the entire tracker based on its content such as fields, icons, etc.

	Tracking::Tracker::Tracker ()
	Tracker constructor.

void	Tracking::Tracker::AddItem (ITrackerItem *trackerItem)
	Add an item to the tracker.

void	Tracking::Tracker::SwapItems (ITrackerItem trackerItem1, ITrackerItem trackerItem2)
	Swaps the specified items.

ConstItemIterator	Tracking::Tracker::EnumerateAllItems () const
	Provides a constant iterator to read each item of the tracker regardless whether they are visible or not.

ItemIterator	Tracking::Tracker::EnumerateAllItems ()
	Provides an iterator to access each item of the tracker regardless whether they are visible or not.

ConstItemIterator	Tracking::Tracker::EnumerateVisibleItems () const
	Provides a constant iterator to read the visible items of the tracker.

ItemIterator	Tracking::Tracker::EnumerateVisibleItems ()
	Provides an iterator to access the visible items of the tracker.

const ITrackerItem *	Tracking::Tracker::GetSelectedItem () const
	Provides the item for the tracker field that is currently the default one, shown with bold fonts, or is being edited.

ITrackerItem *	Tracking::Tracker::GetSelectedItem ()
	Provides access to change the item that is currently the default field, shown with bold fonts, or is being edited.

virtual void	Tracking::Tracker::Synchronize ()
	Draws the tracker after ensuring that each field's value is consistent based on the input.

virtual void	Tracking::Tracker::RefreshFade ()
	Function for updating the fade animation.

DG::NativeRect	Tracking::Tracker::GetRect (void) const
	Provides the size and position of the tracker.

void	Tracking::Tracker::SetPosition (const DG::NativePoint &point, bool animated=false, short milliSec=-1)
	Repositions the tracker with the possibility of being animated.

void	Tracking::Tracker::MoveToVisiblePosition ()
	Moves the tracker to near to its current location but where it doesn't obstruct anything.

void	Tracking::Tracker::StayInVisiblePosition ()
	Makes tracker stay at the position set by MoveToVisiblePosition.

DG::Item *	Tracking::Tracker::ActivateEditMode ()
	Starts the editing of the currently default tracker field (see GetSelectedItem)

void	Tracking::Tracker::DeactivateEditMode (ValueHandlingOnDeactivate valueHandling, const GS::Optional< const ITrackerItem * > &acceptedItemPtr, PositionHandingOnDeactivate positionHandling)
	Stops the editing of the currently default tracker field (see GetSelectedItem)

bool	Tracking::Tracker::IsInEditMode () const
	Checks if any tracker field value is being edited.

bool	Tracking::Tracker::IsTrackerEditWindowActive () const
	Checks whether the tracker's window is focused.

void	Tracking::Tracker::SetNextActivableItem ()
	Activates the editing of the field following (i.e. the row below) the default or edited one.

void	Tracking::Tracker::SetPrevActivableItem ()
	Activates the editing of the field preceding (i.e. the row above) the default or edited one.

bool	Tracking::Tracker::IsFirstActivableItemActive ()
	Checks whether the first editable field is currently being edited or not.

bool	Tracking::Tracker::IsLastActivableItemActive ()
	Checks whether the last editable field is currently being edited or not.

void	Tracking::Tracker::SetFirstActivableItem ()
	Activates the first editable field (i.e. the topmost editable row)

void	Tracking::Tracker::SetLastActivableItem ()
	Activates the last editable field (i.e. the bottommost editable row)

void	Tracking::Tracker::Hide () override
	Hides the tracker.

void	Tracking::Tracker::Show () override
	Shows the tracker.

bool	Tracking::Tracker::IsVisible () const override
	Checks whether the tracker is visible or not.

void	Tracking::Tracker::SetGlobalOpacity (float opacity)
	Changes the opacity of the entire tracker, with its texts and background as a single unit.

void	Tracking::Tracker::SetShowParameterNames (bool showParameterNames)
	Changes the appearance of the tracker whether to display the name of the fields or not.

void	Tracking::Tracker::SetAllwaysShowParameterNames (bool allwaysShowParameterNames)
	Provides the option to override the value specified by SetShowParameterNames.

void	Tracking::Tracker::SetEditTrackerSizePreference (bool isEditTrackerMinimizedParam)
	Changes the behavior of the tracker whether to automatically expand and show every field each time a field is started to be edited.

static void	Tracking::Tracker::SetForegroundColor (const Gfx::Color &foregroundColorToSet)
	Changes the color of texts and icons globally for all trackers.

static void	Tracking::Tracker::SetBackgroundColor (const Gfx::Color &backgroundColorToSet)
	Changes the background color (i.e. the fill behind texts and icons) globally for all trackers.

static void	Tracking::Tracker::SetFrameColor (const Gfx::Color &frameColorToSet)
	Changes the frame color globally for all trackers.

static Gfx::Color	Tracking::Tracker::GetDefaultForegroundColor ()
	Retrieves the color of texts and icons used globally by all trackers.

static Gfx::Color	Tracking::Tracker::GetDefaultBackgroundColor ()
	Retrieves the background color (i.e. the fill behind texts and icons) used globally by all trackers.

static Gfx::Color	Tracking::Tracker::GetDefaultFrameColor ()
	Retrieves the frame color used globally by all trackers.

static void	Tracking::Tracker::SetOpacity (float opacityToSet)
	Changes the opacity of the background (i.e. the fill behind texts and icons) for all trackers, globally.

static void	Tracking::Tracker::SetDrawFrame (bool drawFrameToSet)
	Changes whether to show the tracker's frame globally for all trackers.

static void	Tracking::Tracker::SetSmallFont (bool smallFontToSet)
	Changes whether the tracker rows should be display more compactly, globally for all trackers.

Gfx::Color	Tracking::Tracker::GetForegroundColor ()
	Retrieves the color of texts and icons.

Gfx::Color	Tracking::Tracker::GetBackgroundColor ()
	Retrieves the background color (i.e. the fill behind texts and icons)

Gfx::Color	Tracking::Tracker::GetFrameColor ()
	Retrieves the tracker's frame color.

static float	Tracking::Tracker::GetOpacity ()
	Retrieves the tracker's opacity.

bool	Tracking::Tracker::GetDrawFrame ()
	Retrieves whether the tracker's frame is shown.

static bool	Tracking::Tracker::GetSmallFont ()
	Retrieves whether tracker rows are displayed more compactly.

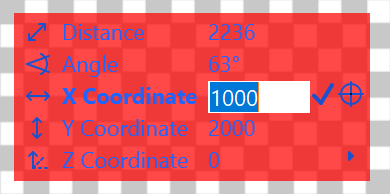

void	Tracking::Tracker::SetCustomBackgroundColor (const Gfx::Color &color)
	Changes the background color (i.e. the fill behind texts and icons)

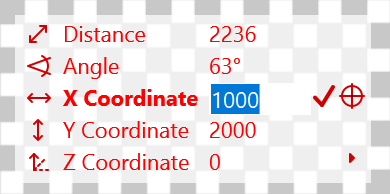

void	Tracking::Tracker::SetCustomForeGroundColor (const Gfx::Color &color)
	Changes the color of texts and icons.

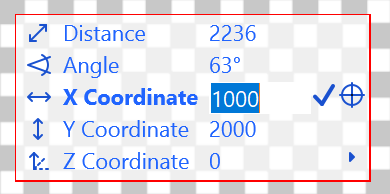

void	Tracking::Tracker::SetCustomFrameColor (const Gfx::Color &color)
	Changes the frame color.

void	Tracking::Tracker::SetCustomDrawFrame (bool drawFrameToSet)
	Changes whether to show the tracker's frame.

bool	Tracking::Tracker::IsDecimalSeparator (const DG::Key::Code &code) const
	Checks whether a keyboard code is for the decimal separator.

static short	Tracking::Tracker::ReadTrackerTimesPref (const GS::UniString &name, Int32 defaultValue)
	Utility function for retrieving tracker animation durations stored in the system preferences (i.e the registry on Windows)

void	Tracking::Tracker::SetInEditKeyboardHandler (GS::Owner< InEditKeyboardHandler > handler)
	Sets a keyboard handler to use in edit mode.

void	Tracking::Tracker::SetRunningModeKeyboardHandler (GS::Owner< RunningModeKeyboardHandler > handler)
	Sets a keyboard handler to use in running mode.

Detailed Description

Tracker API

The Tracker API provides functions to create custom trackers.

Tracking::Tracker

Typedef Documentation

◆ TrackerRef

using ACAPI::Tracking::v1::TrackerRef = typedef std::reference_wrapper<::Tracking::Tracker>

Reference to the type Tracking::Tracker.

Since: Archicad 28

Enumeration Type Documentation

◆ PositionHandingOnDeactivate

enum class Tracking::Tracker::PositionHandingOnDeactivate

strong

Determines how to relocate the tracker when the editing of the field needs to be ended.

Enumerator
KeepAsItIs	The tracker is going to be kept at its current location
RemoveFromIdealPosition	The tracker is going to be moved to the position controlled by `GetTrackerPosition`

◆ ValueHandlingOnDeactivate

enum class Tracking::Tracker::ValueHandlingOnDeactivate

strong

Determines what to do with the edited field's latest value when the editing of the field needs to end.

Enumerator
Accept	The edited field's latest value will be taken into account
Reject	The edited field's latest value won't be taken into account

Function Documentation

◆ ActivateEditMode()

DG::Item * Tracking::Tracker::ActivateEditMode ( )

Starts the editing of the currently default tracker field (see GetSelectedItem)

Returns

a pointer to the DG::Item for the actual input field (e.g. a DG::RealEdit)
nullptr when the tracker has no fields/items

Precondition: Must be called when not already editing a field (i.e. IsInEditMode is false)

◆ AddItem()

void Tracking::Tracker::AddItem ( ITrackerItem * trackerItem )

Add an item to the tracker.

Parameters

[in] trackerItem The item to be added

◆ DeactivateEditMode()

void Tracking::Tracker::DeactivateEditMode	(	ValueHandlingOnDeactivate	valueHandling,
		const GS::Optional< const ITrackerItem * > &	acceptedItemPtr,
		PositionHandingOnDeactivate	positionHandling
	)

Stops the editing of the currently default tracker field (see GetSelectedItem)

Parameters

[in]	valueHandling	when `Accept`, the currently edited field value will be taken into account and will have its effect when `Reject`, the currently edited field value will be discarded
[in]	acceptedItemPtr	when the Optional has a value, the function emits an `OnInputAccept` event with the Optional's value as the argument of the event
[in]	positionHandling	determines how to relocate the tracker when the editing of the field needs to end

Precondition: Must be called when already editing a field (i.e. IsInEditMode is true)

◆ EnumerateAllItems() [1/2]

ItemIterator Tracking::Tracker::EnumerateAllItems ( )

Provides an iterator to access each item of the tracker regardless whether they are visible or not.

Returns: Returns an ItemIterator

◆ EnumerateAllItems() [2/2]

ConstItemIterator Tracking::Tracker::EnumerateAllItems ( ) const

Provides a constant iterator to read each item of the tracker regardless whether they are visible or not.

Returns: Returns a ConstItemIterator

◆ EnumerateVisibleItems() [1/2]

ItemIterator Tracking::Tracker::EnumerateVisibleItems ( )

Provides an iterator to access the visible items of the tracker.

Returns: Returns an ItemIterator

◆ EnumerateVisibleItems() [2/2]

ConstItemIterator Tracking::Tracker::EnumerateVisibleItems ( ) const

Provides a constant iterator to read the visible items of the tracker.

Returns: Returns a ConstItemIterator

◆ GetBackgroundColor()

Gfx::Color Tracking::Tracker::GetBackgroundColor ( )

Retrieves the background color (i.e. the fill behind texts and icons)

Returns: the color of the tracker's background

The result is be defined by SetBackgroundColor unless overridden by SetCustomBackgroundColor

◆ GetDefaultBackgroundColor()

static Gfx::Color Tracking::Tracker::GetDefaultBackgroundColor ( )

static

Retrieves the background color (i.e. the fill behind texts and icons) used globally by all trackers.

Returns: the color for the background used by default in all trackers

The result is defined by SetBackgroundColor

◆ GetDefaultForegroundColor()

static Gfx::Color Tracking::Tracker::GetDefaultForegroundColor ( )

static

Retrieves the color of texts and icons used globally by all trackers.

Returns: the color of texts and icons used by default in all trackers

The result is defined by SetForegroundColor

◆ GetDefaultFrameColor()

static Gfx::Color Tracking::Tracker::GetDefaultFrameColor ( )

static

Retrieves the frame color used globally by all trackers.

Returns: the frame color used by default in all trackers

The result is defined by SetFrameColor

◆ GetDrawFrame()

bool Tracking::Tracker::GetDrawFrame ( )

Retrieves whether the tracker's frame is shown.

Returns: bool value, when true, the trackers frame is displayed

The result might be defined by SetDrawFrame unless overridden by SetCustomDrawFrame

◆ GetForegroundColor()

Gfx::Color Tracking::Tracker::GetForegroundColor ( )

Retrieves the color of texts and icons.

Returns: the color of the tracker's texts and icons

The result is defined by SetForegroundColor unless overridden by SetCustomForeGroundColor

◆ GetFrameColor()

Gfx::Color Tracking::Tracker::GetFrameColor ( )

Retrieves the tracker's frame color.

Returns: the frame color of the tracker

The result is be defined by SetFrameColor unless overridden by SetCustomFrameColor

◆ GetOpacity()

static float Tracking::Tracker::GetOpacity ( )

static

Retrieves the tracker's opacity.

Returns: the opacity of trackers, fully transparent when 0.0f, fully opaque when 1.0f

The result is defined by SetOpacity

◆ GetRect()

DG::NativeRect Tracking::Tracker::GetRect ( void ) const

Provides the size and position of the tracker.

Returns: Returns the rectangle as a DG::NativeRect (where values are multiplied with the HiDPI factor)

◆ GetSelectedItem() [1/2]

ITrackerItem * Tracking::Tracker::GetSelectedItem ( )

Provides access to change the item that is currently the default field, shown with bold fonts, or is being edited.

Returns: Returns a pointer to an ITrackerItem

Here for instance, the X row is going to be the selected item

◆ GetSelectedItem() [2/2]

const ITrackerItem * Tracking::Tracker::GetSelectedItem ( ) const

Provides the item for the tracker field that is currently the default one, shown with bold fonts, or is being edited.

Returns: Returns a pointer to a const ITrackerItem

Here for instance, the Y row is going to be the selected item

◆ GetSmallFont()

static bool Tracking::Tracker::GetSmallFont ( )

static

Retrieves whether tracker rows are displayed more compactly.

Returns: bool value, when true, the height of the rows are shorter

Remarks: Not recommended for general use. Might be removed in the future. Remnant for supporting an old Work Environment option. (Was available until AC19)

◆ GetTracker() [1/2]

Tracker & Tracking::Tracker::InEditKeyboardHandler::GetTracker ( )

protected

Gets the parent tracker, where the events will be handled.

Returns: The parent tracker

◆ GetTracker() [2/2]

Tracker & Tracking::Tracker::RunningModeKeyboardHandler::GetTracker ( )

protected

Gets the parent tracker, where the events will be handled.

Returns: The parent tracker

◆ GetTrackerManager()

Result< TrackerManager > ACAPI::Tracking::v1::GetTrackerManager ( )

inline

A function to create TrackerManager instance.

Returns: Returns the TrackerManager instance. This process cannot fail.

◆ Hide()

void Tracking::Tracker::Hide ( )

override

Hides the tracker.

When called while a tracker field is being edited, the field's value is going to be rejected.

◆ HintGuard()

Tracking::Tracker::HintGuard::HintGuard	(	Tracker &	trackerToGuard,
		Hint	newHint
	)

Starts the scope of the hint.

Parameters

[in,out]	trackerToGuard	the affected tracker
[in]	newHint	the fields of `trackerToGuard` (i.e. `ITrackerItem`s) will receive this hint, which affect if the cursor should be moved or whether new Guide Lines needs to be placed

◆ IsDecimalSeparator()

bool Tracking::Tracker::IsDecimalSeparator ( const DG::Key::Code & code ) const

Checks whether a keyboard code is for the decimal separator.

Parameters

[in] code the code identifying the keyboard key

Returns: a bool value, true when the keyboard code represents the decimal separator

◆ IsFirstActivableItemActive()

bool Tracking::Tracker::IsFirstActivableItemActive ( )

Checks whether the first editable field is currently being edited or not.

Returns: bool value, true when the currently edited field is the first of the editable ones

◆ IsInEditMode()

bool Tracking::Tracker::IsInEditMode ( ) const

Checks if any tracker field value is being edited.

Returns: bool value, true when a field is being edited

◆ IsLastActivableItemActive()

bool Tracking::Tracker::IsLastActivableItemActive ( )

Checks whether the last editable field is currently being edited or not.

Returns: bool value, true when the currently edited field is the last of the editable ones

◆ IsTrackerEditWindowActive()

bool Tracking::Tracker::IsTrackerEditWindowActive ( ) const

Checks whether the tracker's window is focused.

Returns: bool value, true when the focused window is the tracker

◆ IsVisible()

bool Tracking::Tracker::IsVisible ( ) const

override

Checks whether the tracker is visible or not.

Returns: a bool value, true when the tracker is visible

◆ KeyPressed() [1/4]

virtual DG::EventHandlerResultType Tracking::Tracker::InEditKeyboardHandler::KeyPressed	(	const DG::Key::Code &	code,
		DG::Item **	item
	)

overrideprotectedvirtual

Handles a regular key press event.

Parameters

[in]	code	the code of the pressed key
[out]	item	Pointer to the UI item where the key press should be forwarded. nullptr by default, leave it as is to not forward the event

Returns: An enum to signal whether the event is processed or should be forwarded to the next handler

◆ KeyPressed() [2/4]

virtual DG::EventHandlerResultType Tracking::Tracker::RunningModeKeyboardHandler::KeyPressed	(	const DG::Key::Code &	code,
		DG::Item **	item
	)

overrideprotectedvirtual

Handles a regular key press event.

Parameters

[in]	code	the code of the pressed key
[out]	item	Pointer to the UI item where the key press should be forwarded. nullptr by default, leave it as is to not forward the event

Returns: An enum to signal whether the event is processed or should be forwarded to the next handler

◆ KeyPressed() [3/4]

virtual DG::EventHandlerResultType Tracking::Tracker::InEditKeyboardHandler::KeyPressed	(	const DG::Key::Modifier &	modifier,
		DG::Item **	item
	)

overrideprotectedvirtual

Handles a modifier key press event.

Parameters

[in]	modifier	the pressed modifier
[out]	item	Pointer to the UI item where the key press should be forwarded. nullptr by default, leave it as is to not forward the event

Returns: An enum to signal whether the event is processed or should be forwarded to the next handler

◆ KeyPressed() [4/4]

virtual DG::EventHandlerResultType Tracking::Tracker::RunningModeKeyboardHandler::KeyPressed	(	const DG::Key::Modifier &	modifier,
		DG::Item **	item
	)

overrideprotectedvirtual

Handles a modifier key press event.

Parameters

[in]	modifier	the pressed modifier
[out]	item	Pointer to the UI item where the key press should be forwarded. nullptr by default, leave it as is to not forward the event

Returns: An enum to signal whether the event is processed or should be forwarded to the next handler

◆ MoveToVisiblePosition()

void Tracking::Tracker::MoveToVisiblePosition ( )

Moves the tracker to near to its current location but where it doesn't obstruct anything.

Remarks: Implementation detail. Not recommended for general use. Might be removed from here in the future.

Precondition: Must be called when not editing a field (i.e. IsInEditMode is false)

The location is determined by GetIdealTrackerPosition.

◆ ReadTrackerTimesPref()

static short Tracking::Tracker::ReadTrackerTimesPref	(	const GS::UniString &	name,
		Int32	defaultValue
	)

static

Utility function for retrieving tracker animation durations stored in the system preferences (i.e the registry on Windows)

Parameters

[in]	name	the key's name for the duration value
[in]	defaultValue	duration in milliseconds, in case the key doesn't exist in the preferences yet

Returns: a short value, animation duration in milliseconds

It is recommended to have name only contain characters representable in a C-string
It is recommended to set defaultValue only to at most a couple seconds. (0 < defaultValue < 2000)
The returned value is always at least 1 ms.

◆ RefreshFade()

virtual void Tracking::Tracker::RefreshFade ( )

virtual

Function for updating the fade animation.

Remarks: Implementation detail. Not recommended for general use. Might be removed from here in the future.

◆ SetAllwaysShowParameterNames()

void Tracking::Tracker::SetAllwaysShowParameterNames ( bool allwaysShowParameterNames )

Provides the option to override the value specified by SetShowParameterNames.

Parameters

[in] allwaysShowParameterNames bool value, when true, field names are forced to be shown, otherwise not

◆ SetBackgroundColor()

static void Tracking::Tracker::SetBackgroundColor ( const Gfx::Color & backgroundColorToSet )

static

Changes the background color (i.e. the fill behind texts and icons) globally for all trackers.

Parameters

[in] backgroundColorToSet the new color for the background

Remarks: Not recommended for general use as changing the tracker colors in Work Environment settings also relies on this function

backgroundColorToSet=Gfx::Color(255, 0, 0)

The alpha component of backgroundColorToSet has no visible effect except for being stored.

◆ SetCustomBackgroundColor()

void Tracking::Tracker::SetCustomBackgroundColor ( const Gfx::Color & color )

Changes the background color (i.e. the fill behind texts and icons)

Parameters

[in] color the new color for the background

Overrides the value defined by SetBackgroundColor
The alpha component of color has no visible effect except for being stored.

◆ SetCustomDrawFrame()

void Tracking::Tracker::SetCustomDrawFrame ( bool drawFrameToSet )

Changes whether to show the tracker's frame.

Parameters

[in] drawFrameToSet bool value, when true, trackers will have a frame

Overrides the value defined by SetDrawFrame

◆ SetCustomForeGroundColor()

void Tracking::Tracker::SetCustomForeGroundColor ( const Gfx::Color & color )

Changes the color of texts and icons.

Parameters

[in] color the new color for texts and icons

Overrides the value defined by SetForegroundColor
The alpha component of color has no visible effect except for being stored.

◆ SetCustomFrameColor()

void Tracking::Tracker::SetCustomFrameColor ( const Gfx::Color & color )

Changes the frame color.

Parameters

[in] color the new color for the frame

Overrides the value defined by SetFrameColor
The color is not reset and it is stored even when the frame turned off (see also: SetDrawFrame)
The alpha component of color has no visible effect except for being stored.

◆ SetDrawFrame()

static void Tracking::Tracker::SetDrawFrame ( bool drawFrameToSet )

static

Changes whether to show the tracker's frame globally for all trackers.

Parameters

[in] drawFrameToSet bool value, when true, trackers will have a frame

Remarks: Not recommended for general use as changing the tracker opacity in Work Environment settings also relies on this function

drawFrameToSet = false	drawFrameToSet = true

◆ SetEditTrackerSizePreference()

void Tracking::Tracker::SetEditTrackerSizePreference ( bool isEditTrackerMinimizedParam )

Changes the behavior of the tracker whether to automatically expand and show every field each time a field is started to be edited.

Parameters

[in] isEditTrackerMinimizedParam bool value, when true, some fields might not be shown immediately

Remarks: Not recommended for general use as changing the tracker colors in Work Environment settings also relies on this function

isEditTrackerMinimizedParam = true	isEditTrackerMinimizedParam = false

◆ SetFirstActivableItem()

void Tracking::Tracker::SetFirstActivableItem ( )

Activates the first editable field (i.e. the topmost editable row)

When a field is being edited at the time of call, the function deactivates that.

◆ SetForegroundColor()

static void Tracking::Tracker::SetForegroundColor ( const Gfx::Color & foregroundColorToSet )

static

Changes the color of texts and icons globally for all trackers.

Parameters

[in] foregroundColorToSet the new color for texts and icons

Remarks: Not recommended for general use as changing the tracker colors in Work Environment settings also relies on this function

foregroundColorToSet=Gfx::Color(255, 0, 0)

The alpha component of foregroundColorToSet has no visible effect except for being stored.

◆ SetFrameColor()

static void Tracking::Tracker::SetFrameColor ( const Gfx::Color & frameColorToSet )

static

Changes the frame color globally for all trackers.

Parameters

[in] frameColorToSet the new color for the frame

Remarks: Not recommended for general use as changing the tracker frame in Work Environment settings also relies on this function

frameColorToSet=Gfx::Color(255, 0, 0)

The color is not reset and it is stored even when the frame turned off (see also: SetDrawFrame)
The alpha component of frameColorToSet has no visible effect except for being stored.

◆ SetGlobalOpacity()

void Tracking::Tracker::SetGlobalOpacity ( float opacity )

Changes the opacity of the entire tracker, with its texts and background as a single unit.

Parameters

[in] opacity a float value, fully transparent when 0.0f, fully opaque when 1.0f

Remarks: Not recommended for general use. Might be removed from here in the future.

The opacity of the field that is being edited is not affected.
The behavior is undefined for cases when the opacity value is less than 0 or greater than 1.

opacity = 0.0f opacity = 0.33f opacity = 0.66f opacity = 1.00f

◆ SetInEditKeyboardHandler()

void Tracking::Tracker::SetInEditKeyboardHandler ( GS::Owner< InEditKeyboardHandler > handler )

Sets a keyboard handler to use in edit mode.

Parameters

[in] handler the handler to set

◆ SetLastActivableItem()

void Tracking::Tracker::SetLastActivableItem ( )

Activates the last editable field (i.e. the bottommost editable row)

When a field is being edited at the time of call, the function deactivates that.

◆ SetNextActivableItem()

void Tracking::Tracker::SetNextActivableItem ( )

Activates the editing of the field following (i.e. the row below) the default or edited one.

When a field is being edited at the time of call, the function deactivates that.
It's cyclic, that is it activates the first editable field when the current one is the last

◆ SetOpacity()

static void Tracking::Tracker::SetOpacity ( float opacityToSet )

static

Changes the opacity of the background (i.e. the fill behind texts and icons) for all trackers, globally.

Parameters

[in]

opacityToSet

a float value, new opacity for the background

fully transparent when 0.0f, fully opaque when 1.0f

Remarks: Not recommended for general use as changing the tracker opacity in Work Environment settings also relies on this function

The behavior is undefined for cases when the opacity value is less than 0 or greater than 1.

opacityToSet = 0.0f	opacityToSet = 0.33f	opacityToSet = 0.66f	opacityToSet = 1.00f

◆ SetPosition()

void Tracking::Tracker::SetPosition	(	const DG::NativePoint &	point,
		bool	animated = `false`,
		short	milliSec = `-1`
	)

Repositions the tracker with the possibility of being animated.

Parameters

[in]	point	Target top left position as DG::NativePoint (where values multiplied with the HiDPI factor)
[in]	animated	False by default. When true, the repositioning is animated.
[in]	milliSec	short parameter controlling the length of the animation in milliseconds. By default -1. When less than zero, the animation length is defined by a tracker registry/preference value "QuickAnimationTime". (See also: ReadTrackerTimesPref) The program gets blocked until the animation is completed, therefore it is not recommended to use long animation times.

◆ SetPrevActivableItem()

void Tracking::Tracker::SetPrevActivableItem ( )

Activates the editing of the field preceding (i.e. the row above) the default or edited one.

When a field is being edited at the time of call, the function deactivates that.
It's cyclic, that is it activates the last editable field when the current one is the first

◆ SetRunningModeKeyboardHandler()

void Tracking::Tracker::SetRunningModeKeyboardHandler ( GS::Owner< RunningModeKeyboardHandler > handler )

Sets a keyboard handler to use in running mode.

Parameters

[in] handler the handler to set

◆ SetShowParameterNames()

void Tracking::Tracker::SetShowParameterNames ( bool showParameterNames )

Changes the appearance of the tracker whether to display the name of the fields or not.

Parameters

[in] showParameterNames bool value, when true, field names are shown, otherwise not

Remarks: Not recommended for general use as changing the tracker setting in Work Environment settings also relies on this function

Side effect: When called while editing a field, the field input might be deactivated and activated

showParameterNames = false	showParameterNames = true

◆ SetSmallFont()

static void Tracking::Tracker::SetSmallFont ( bool smallFontToSet )

static

Changes whether the tracker rows should be display more compactly, globally for all trackers.

Parameters

[in] smallFontToSet bool value, when true, the height of the rows will be shorter

Remarks: Not recommended for general use. Might be removed in the future. Remnant for supporting an old Work Environment option. (Was available until AC19)

smallFontToSet = false	smallFontToSet = true

◆ ShowReturnToRunningModeButton()

void Tracking::Tracker::ShowReturnToRunningModeButton ( bool show )

protected

Provides the option to force hiding the Mark Position button for each field of the tracker.

Parameters

[in]

show

when false, no Mark position button will be shown for any field
when true, Mark position buttons are not forced to be hidden and its availability is determined by the field (ITrackerItem) it belongs to

Mark Postion button:

◆ StayInVisiblePosition()

void Tracking::Tracker::StayInVisiblePosition ( )

Makes tracker stay at the position set by MoveToVisiblePosition.

Remarks: Implementation detail. Not recommended for general use. Might be removed from here in the future.

Related to the Tracker Landing Game easter egg

◆ SwapItems()

void Tracking::Tracker::SwapItems	(	ITrackerItem *	trackerItem1,
		ITrackerItem *	trackerItem2
	)

Swaps the specified items.

Parameters

[in]	trackerItem1	Item to be swapped with `trackerItem2`
[in]	trackerItem2	Item to be swapped with `trackerItem1`

Precondition: Both items must already be added to the tracker and they must not be the same item

◆ Tracker()

Tracking::Tracker::Tracker ( )

Tracker constructor.

Side effect: Initializes tracker animation durations called "QuickAnimationTime" and "SlowAnimationTime" within system preferences in case these haven't been done yet (see also ReadTrackerTimesPref)

◆ ~HintGuard()

Tracking::Tracker::HintGuard::~HintGuard ( )

Finishes the scope of the hint.

Postcondition: The state modified by the guard within the instance given in HintGuard::HintGuard's trackerToGuard is restored to its original state

Classes

Typedefs

Enumerations

Functions

Detailed Description

Tracker API

Typedef Documentation

◆ TrackerRef

Enumeration Type Documentation

◆ PositionHandingOnDeactivate

◆ ValueHandlingOnDeactivate

Function Documentation

◆ ActivateEditMode()

◆ AddItem()

◆ DeactivateEditMode()

◆ EnumerateAllItems() [1/2]

◆ EnumerateAllItems() [2/2]

◆ EnumerateVisibleItems() [1/2]

◆ EnumerateVisibleItems() [2/2]

◆ GetBackgroundColor()

◆ GetDefaultBackgroundColor()

◆ GetDefaultForegroundColor()

◆ GetDefaultFrameColor()

◆ GetDrawFrame()

◆ GetForegroundColor()

◆ GetFrameColor()

◆ GetOpacity()

◆ GetRect()

◆ GetSelectedItem() [1/2]

◆ GetSelectedItem() [2/2]

◆ GetSmallFont()

◆ GetTracker() [1/2]

◆ GetTracker() [2/2]

◆ GetTrackerManager()

◆ Hide()

◆ HintGuard()

◆ IsDecimalSeparator()

◆ IsFirstActivableItemActive()

◆ IsInEditMode()

◆ IsLastActivableItemActive()

◆ IsTrackerEditWindowActive()

◆ IsVisible()

◆ KeyPressed() [1/4]

◆ KeyPressed() [2/4]

◆ KeyPressed() [3/4]

◆ KeyPressed() [4/4]

◆ MoveToVisiblePosition()

◆ ReadTrackerTimesPref()

◆ RefreshFade()

◆ SetAllwaysShowParameterNames()

◆ SetBackgroundColor()

◆ SetCustomBackgroundColor()

◆ SetCustomDrawFrame()

◆ SetCustomForeGroundColor()

◆ SetCustomFrameColor()

◆ SetDrawFrame()

◆ SetEditTrackerSizePreference()

◆ SetFirstActivableItem()

◆ SetForegroundColor()

◆ SetFrameColor()

◆ SetGlobalOpacity()

◆ SetInEditKeyboardHandler()

◆ SetLastActivableItem()

◆ SetNextActivableItem()

◆ SetOpacity()

◆ SetPosition()

◆ SetPrevActivableItem()

◆ SetRunningModeKeyboardHandler()

◆ SetShowParameterNames()

◆ SetSmallFont()

◆ ShowReturnToRunningModeButton()

◆ StayInVisiblePosition()

◆ SwapItems()

◆ Tracker()

◆ ~HintGuard()
