A base class for all element defaults. More...

#include <ElementDefault.hpp>

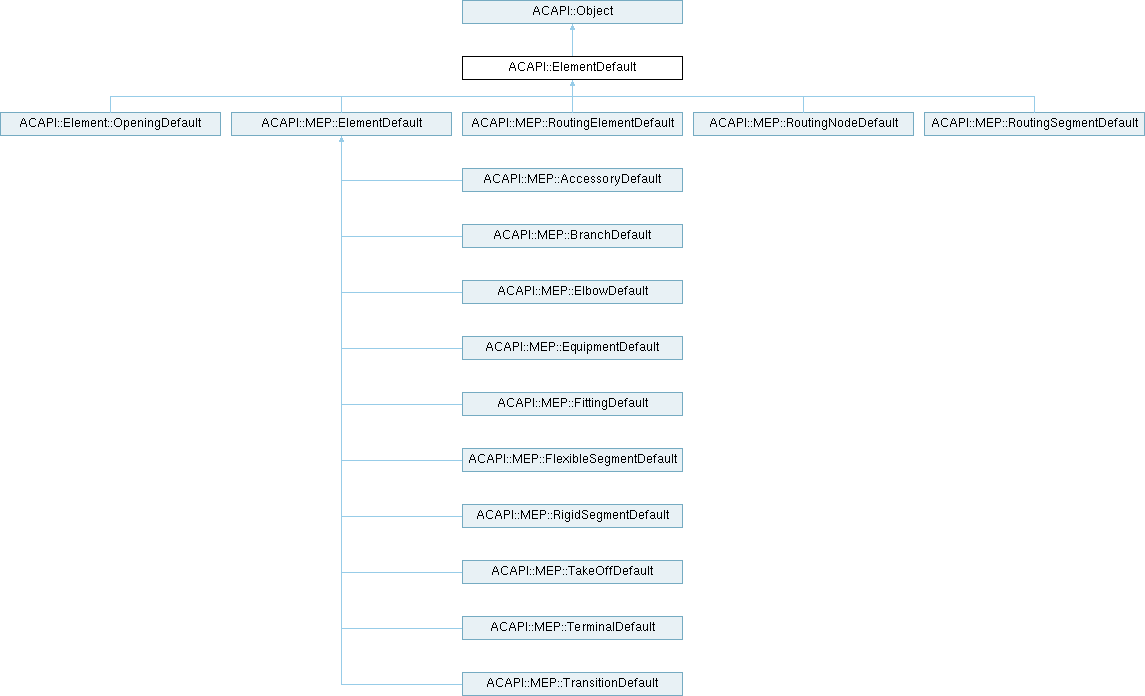

Inheritance diagram for ACAPI::ElementDefault:

Public Member Functions
	ElementDefault (std::shared_ptr< Impl::ElementDefaultImpl > impl)
	Constructs a new ElementDefault.

Result< void >	SetAsArchicadDefault () const
	Sets the locally prepared Default settings to the Archicad Default.

API_ElemType	GetElemType () const

Public Member Functions inherited from ACAPI::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.

const API_Token &	GetToken () const
	Get the token for this object.

Additional Inherited Members
Protected Member Functions inherited from ACAPI::Object
	~Object ()
	Default destructor.

Protected Attributes inherited from ACAPI::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

A base class for all element defaults.

This class represents the default state of Archicad elements. When an element is placed in Archicad, either from the API of from the UI, it always uses the Element Defaults as its default parameters.

Constructor & Destructor Documentation

◆ ElementDefault()

ACAPI::ElementDefault::ElementDefault ( std::shared_ptr< Impl::ElementDefaultImpl > impl )

Constructs a new ElementDefault.

Parameters

impl	Impl instance of the element default.

Member Function Documentation

◆ GetElemType()

API_ElemType ACAPI::ElementDefault::GetElemType ( ) const

Returns: The type of the element default.

◆ SetAsArchicadDefault()

Result< void > ACAPI::ElementDefault::SetAsArchicadDefault ( ) const

Sets the locally prepared Default settings to the Archicad Default.

Returns: Error if Archicad could not apply the set of values to the Default.
