ACAPI::MEP::v1::ReferenceSetBase Class Reference

The ReferenceSetBase represents a named table, and it contains referenceIds which are used as keys in the PreferenceTables. By default, Archicad will provide you the DN referenceSet, but you can choose your own by renaming it and populate it with your desired values. More...

#include <MEPReferenceSetBase.hpp>

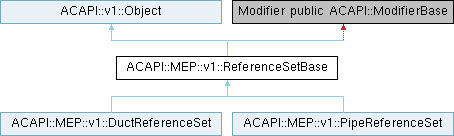

Inheritance diagram for ACAPI::MEP::v1::ReferenceSetBase:

Public Member Functions
bool	Exists () const
Result< void >	IsEditable () const
	Checks whether the table is editable.
GS::UniString	GetName () const
uint32_t	GetSize () const
Result< uint32_t >	GetReferenceId (uint32_t index) const
Result< bool >	IsReferenceIdDefined (uint32_t index) const
	Checks whether an entry from the referenceSet is defined. A referenceId is defined if at least one preferenceTable has values associated to it.
template<typename ModifierFunc >
Result< void >	Modify (const ModifierFunc &modifierFunc, const GS::UniString &undoString)
	Executes the passed modifier scope in an Undoable command.
void	SetName (const GS::UniString &referenceSetName)
	Sets the name of the referenceSet.
Result< uint32_t >	Add (uint32_t id)
	Adds a new referenceId into the referenceSet. If the id is a duplicate, it will not be inserted twice.
Result< void >	Delete (uint32_t id)
	Deletes an entry from the referenceSet. Only undefined referenceIds can be deleted. A referenceId is defined if at least one preferenceTable has values associated to it.
Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.
const API_Token &	GetToken () const
	Get the token for this object.

Protected Member Functions
	ReferenceSetBase (std::shared_ptr< Impl::IReferenceSetBaseImpl > impl)
	Constructs a ReferenceSetBase with the given base implementation.
	Modifier (ReferenceSetBase &parent)
	Constructs a Modifier with the given referenceSetBase.
Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.

Additional Inherited Members
Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

The ReferenceSetBase represents a named table, and it contains referenceIds which are used as keys in the PreferenceTables. By default, Archicad will provide you the DN referenceSet, but you can choose your own by renaming it and populate it with your desired values.

Since

Archicad 28

The entries of the set have to be unique and are always in ascending order. Entries that are defined in PreferenceTables cannot be deleted.

Example code snippet from Test / New MEP

Getters


        ACAPI::Result<DuctReferenceSet> ductReferenceSet = GetDuctReferenceSet ();
        if (ductReferenceSet.IsErr ())
            return ductReferenceSet.UnwrapErr ().kind;

        preferenceReporter.Add ("Duct Preferences");
        preferenceReporter.AddNewLine ();

        preferenceReporter.SetTabCount (1);
        preferenceReporter.Add ("Duct Reference Set");
        uint32_t referenceIdCount = ductReferenceSet->GetSize ();
        preferenceReporter.SetTabCount (2);
        for (uint32_t i = 0; i < referenceIdCount; ++i) {
            preferenceReporter.Add ("ReferenceId", *ductReferenceSet->GetReferenceId (i));
        }


Modification

    Reporter preferenceReporter;

    ACAPI::Result<PipeReferenceSet> referenceSet = GetPipeReferenceSet ();
    if (referenceSet.IsErr ())
        return referenceSet.UnwrapErr ().kind;

    // SetName
    preferenceReporter.Add ("Renaming the Reference Set...");
    referenceSet->Modify ([&] (ACAPI::MEP::ReferenceSetBase::Modifier& modifier) {
        modifier.SetName ("Not DN");
    }, "Modify the name of Reference Set.");

    // Addition
    preferenceReporter.Add ("Adding new ReferenceIds to the Reference Set...");
    referenceSet->Modify ([&] (ReferenceSetBase::Modifier& modifier) {
        const auto& Add = ([&] (UInt32 referenceId)
        {
            preferenceReporter.Add ("Trying to add " + GS::ValueToUniString (referenceId));
            ACAPI::Result<uint32_t> addRes = modifier.Add (referenceId);
            if (addRes.IsOk ())
                preferenceReporter.Add ("ReferenceId successfully added!");
            else
                preferenceReporter.Add (GS::UniString (addRes.UnwrapErr ().text));
        });

        Add (110);
        Add (700);
        Add (1000);
    }, "Add new values to the Reference Set.");

    // Deletion
    const auto ReportDeletion = [&] (const ACAPI::Result<void>& deletionResult) {
        if (deletionResult.IsOk ())
            preferenceReporter.Add ("Deletion was successful.");
        else
            preferenceReporter.Add ("Deletion unsuccessful", GS::UniString (deletionResult.UnwrapErr ().text));
    };

    // Deleting an unused ReferenceId
    preferenceReporter.Add ("Deleting ReferenceId 400, which is unused");
    referenceSet->Modify ([&] (ACAPI::MEP::ReferenceSetBase::Modifier& modifier) {
        ACAPI::Result<void> res = modifier.Delete (400);
        ReportDeletion (res);
    }, "Delete an unused value from the Reference Set.");



Constructor & Destructor Documentation

ReferenceSetBase()

ACAPI::MEP::v1::ReferenceSetBase::ReferenceSetBase ( std::shared_ptr< Impl::IReferenceSetBaseImpl >  impl )

protected

Constructs a ReferenceSetBase with the given base implementation.

Parameters

impl	The given base implementation.

Member Function Documentation

Add()

Result< uint32_t > ACAPI::MEP::v1::ReferenceSetBase::Add

(

uint32_t

id

)

Adds a new referenceId into the referenceSet. If the id is a duplicate, it will not be inserted twice.

Parameters

id	The id to be added.

Returns

Returns error if the referenceId is a duplicate, otherwise returns the index of the referenceId in the referenceSet.

Delete()

Result< void > ACAPI::MEP::v1::ReferenceSetBase::Delete

(

uint32_t

id

)

Deletes an entry from the referenceSet. Only undefined referenceIds can be deleted. A referenceId is defined if at least one preferenceTable has values associated to it.

Parameters

id	The id to be deleted.

Returns

Returns error if the id cannot be deleted due to reasons mentioned above, otherwise nothing.

Exists()

bool ACAPI::MEP::v1::ReferenceSetBase::Exists

(

)

const

Returns

Checks if the object still exists.

GetName()

GS::UniString ACAPI::MEP::v1::ReferenceSetBase::GetName

(

)

const

Returns

Returns the name of the referenceSet.

GetReferenceId()

Result< uint32_t > ACAPI::MEP::v1::ReferenceSetBase::GetReferenceId

(

uint32_t

index

)

const

Parameters

index

The index of the row. Index starts from 0.

Returns

Returns the referenceId of the row identified by index.

GetSize()

uint32_t ACAPI::MEP::v1::ReferenceSetBase::GetSize

(

)

const

Returns

Returns the size of the referenceSet.

IsEditable()

Result< void > ACAPI::MEP::v1::ReferenceSetBase::IsEditable

(

)

const

Checks whether the table is editable.

Returns

Returns nothing if the table is editable, otherwise the error code and error message containing information about the reason.

IsReferenceIdDefined()

Result< bool > ACAPI::MEP::v1::ReferenceSetBase::IsReferenceIdDefined

(

uint32_t

index

)

const

Checks whether an entry from the referenceSet is defined. A referenceId is defined if at least one preferenceTable has values associated to it.

Parameters

index

The index of the row. Index starts from 0.

Returns

Returns whether the row identified by index is defined.

Modifier()

ACAPI::MEP::v1::ReferenceSetBase::Modifier ( ReferenceSetBase &  parent )

protected

Constructs a Modifier with the given referenceSetBase.

Parameters

parent

The given parent ReferenceSetBase.

Modify()

template<typename ModifierFunc >

Result< void > ACAPI::MEP::v1::ReferenceSetBase::Modify	(	const ModifierFunc &	modifierFunc,
		const GS::UniString &	undoString
	)

Executes the passed modifier scope in an Undoable command.

Parameters

modifierFunc	The modifier scope (lambda, std::function or function pointer) the caller wants to execute.
undoString	The text which appears in the undo queue of Archicad after executing the command.

Returns

Returns an error if the process of modification fails for some reason, otherwise nothing.

SetName()

void ACAPI::MEP::v1::ReferenceSetBase::SetName

(

const GS::UniString &

referenceSetName

)

Sets the name of the referenceSet.

Parameters

referenceSetName

The name to be set.
