ACAPI::MEP::v1::ElementDefault Class Reference

The ElementDefault contains the necessary non-geometric data for creating a MEP element. More...

#include <MEPElementDefault.hpp>

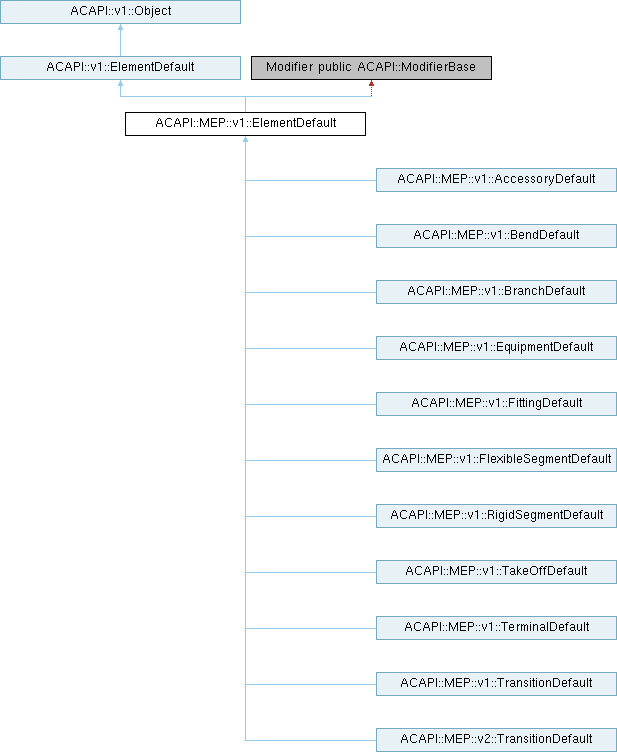

Inheritance diagram for ACAPI::MEP::v1::ElementDefault:

Public Member Functions
std::optional< double >	GetInsulationThickness () const
uint32_t	GetPortCount () const
Domain	GetDomain () const
API_Guid	GetObjectId () const
Result< Domain >	GetDomainOfPort (uint32_t portIndex) const
Result< VentilationPortDefault >	GetVentilationPortDefault (uint32_t portIndex) const
Result< PipingPortDefault >	GetPipingPortDefault (uint32_t portIndex) const
Result< CableCarrierPortDefault >	GetCableCarrierPortDefault (uint32_t portIndex) const
template<class ModifierFunc >
Result< void >	Modify (ModifierFunc &&modifierFunc)
	Executes the given modifier scope in a NotUndoable command.
void	RemoveInsulation ()
	Removes the insulation.
Result< void >	SetInsulationThickness (double insulationThickness)
	Sets the thickness of insulation on the ElementDefault.
void	SetObjectId (const API_Guid &libraryPartId)
	Sets the referenced library part of the ElementDefault.
Public Member Functions inherited from ACAPI::v1::ElementDefault
Result< void >	SetAsArchicadDefault () const
	Sets the locally prepared Default settings to the Archicad Default.
Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.
const API_Token &	GetToken () const
	Get the token for this object.

Protected Member Functions
	ElementDefault (std::shared_ptr< Impl::IElementDefaultImpl > impl)
	Constructs an ElementDefault with the given element default implementation.
	Modifier (ElementDefault &parent)
	Constructs a Modifier with the given parent ElementDefault.
Protected Member Functions inherited from ACAPI::v1::ElementDefault
	ElementDefault (std::shared_ptr< Impl::ElementDefaultImpl > impl)
	Constructs a new ElementDefault.
Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.

Friends
class	ACAPI::Impl::ObjectCreator

Additional Inherited Members
Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

The ElementDefault contains the necessary non-geometric data for creating a MEP element.

Since

Archicad 27

Example code snippets from Test / New MEP

Getters

    auto ductBranchDefault = CreateBranchDefault (Domain::Ventilation);
    if (ductBranchDefault.IsErr ())
        return ductBranchDefault.UnwrapErr ().kind;

    WriteElementDefaultDetails (*ductBranchDefault);

    auto pipeBranchDefault = CreateBranchDefault (Domain::Piping);
    if (pipeBranchDefault.IsErr ())
        return pipeBranchDefault.UnwrapErr ().kind;

    WriteElementDefaultDetails (*pipeBranchDefault);

    auto cableCarrierBranchDefault = CreateBranchDefault (Domain::CableCarrier);
    if (cableCarrierBranchDefault.IsErr ())
        return cableCarrierBranchDefault.UnwrapErr ().kind;

    WriteElementDefaultDetails (*cableCarrierBranchDefault);

void WriteElementDefaultDetails (const ElementDefault& mepElemDefault)
{
    Reporter elementDefaultReporter;

    elementDefaultReporter.Add ("Domain of default", mepElemDefault.GetDomain ());

    uint32_t portCount = mepElemDefault.GetPortCount ();
    for (uint32_t portIdx = 0; portIdx < portCount; portIdx++) {
        elementDefaultReporter.SetTabCount (1);

        ACAPI::Result<VentilationPortDefault> ventilationPortDefault = mepElemDefault.GetVentilationPortDefault (portIdx);
        if (ventilationPortDefault.IsOk ()) {
            elementDefaultReporter.Add ("Port name", ventilationPortDefault->GetName ());
            elementDefaultReporter.SetTabCount (2);
            elementDefaultReporter.Add ("Domain", ventilationPortDefault->GetDomain ());
            elementDefaultReporter.Add ("Width", ventilationPortDefault->GetWidth ());
            elementDefaultReporter.Add ("Height", ventilationPortDefault->GetHeight ());
            elementDefaultReporter.Add ("Shape", ventilationPortDefault->GetShape ());
            elementDefaultReporter.Add ("MEPSystem", ventilationPortDefault->GetMEPSystem ());
            elementDefaultReporter.Add ("WallThickness", ventilationPortDefault->GetWallThickness ());
            elementDefaultReporter.Add ("FlowDirection", ventilationPortDefault->GetFlowDirection ());
        } else {
            ACAPI::Result<PipingPortDefault> pipingPortDefault = mepElemDefault.GetPipingPortDefault (portIdx);
            if (pipingPortDefault.IsOk ()) {
                elementDefaultReporter.Add ("Port name", pipingPortDefault->GetName ());
                elementDefaultReporter.SetTabCount (2);
                elementDefaultReporter.Add ("Domain", pipingPortDefault->GetDomain ());
                elementDefaultReporter.Add ("Diameter", pipingPortDefault->GetDiameter ());
                elementDefaultReporter.Add ("Shape", pipingPortDefault->GetShape ());
                elementDefaultReporter.Add ("MEPSystem", pipingPortDefault->GetMEPSystem ());
                elementDefaultReporter.Add ("WallThickness", pipingPortDefault->GetWallThickness ());
                elementDefaultReporter.Add ("FlowDirection", pipingPortDefault->GetFlowDirection ());
            } else {
                ACAPI::Result<CableCarrierPortDefault> cableCarrierPortDefault = mepElemDefault.GetCableCarrierPortDefault (portIdx);
                if (cableCarrierPortDefault.IsOk ()) {
                    elementDefaultReporter.Add ("Port name", cableCarrierPortDefault->GetName ());
                    elementDefaultReporter.SetTabCount (2);
                    elementDefaultReporter.Add ("Domain", cableCarrierPortDefault->GetDomain ());
                    elementDefaultReporter.Add ("Width", cableCarrierPortDefault->GetWidth ());
                    elementDefaultReporter.Add ("Height", cableCarrierPortDefault->GetHeight ());
                    elementDefaultReporter.Add ("Shape", cableCarrierPortDefault->GetShape ());
                    elementDefaultReporter.Add ("MEPSystem", cableCarrierPortDefault->GetMEPSystem ());
                }
            }
        }
    }
    elementDefaultReporter.SetTabCount (0);

    std::optional<double> insulation = mepElemDefault.GetInsulationThickness ();
    insulation.has_value () ? elementDefaultReporter.Add ("Insulation thickness", *insulation) : elementDefaultReporter.Add ("Has no insulation");

    elementDefaultReporter.Write ();
}

Constructor & Destructor Documentation

ElementDefault()

ACAPI::MEP::v1::ElementDefault::ElementDefault ( std::shared_ptr< Impl::IElementDefaultImpl >  impl )

protected

Constructs an ElementDefault with the given element default implementation.

Parameters

impl	The element default implementation.

Member Function Documentation

GetCableCarrierPortDefault()

Result< CableCarrierPortDefault > ACAPI::MEP::v1::ElementDefault::GetCableCarrierPortDefault

(

uint32_t

portIndex

)

const

Parameters

portIndex

Zero-based index of Ports.

Returns

Returns an error if the index is out of range, or the corresponding Port is not of CableCarrier domain.

GetDomain()

Domain ACAPI::MEP::v1::ElementDefault::GetDomain

(

)

const

Returns

Returns the domain of the ElementDefault.

GetDomainOfPort()

Result< Domain > ACAPI::MEP::v1::ElementDefault::GetDomainOfPort

(

uint32_t

portIndex

)

const

Parameters

portIndex

Zero-based index of Ports.

Returns

Returns an error if the index is out of range, otherwise the domain of the given Port.

GetInsulationThickness()

std::optional< double > ACAPI::MEP::v1::ElementDefault::GetInsulationThickness

(

)

const

Returns

Returns the insulation thickness if the ElementDefault has insulation, otherwise std::nullopt. ElementDefaults of cable carrier domain cannot have insulation.

GetObjectId()

API_Guid ACAPI::MEP::v1::ElementDefault::GetObjectId

(

)

const

Returns

Returns the main GUID of the referenced Library Part.

GetPipingPortDefault()

Result< PipingPortDefault > ACAPI::MEP::v1::ElementDefault::GetPipingPortDefault

(

uint32_t

portIndex

)

const

Parameters

portIndex

Zero-based index of Ports.

Returns

Returns an error if the index is out of range, or the corresponding Port is not of Piping domain.

GetPortCount()

uint32_t ACAPI::MEP::v1::ElementDefault::GetPortCount

(

)

const

Returns

Returns the number of ports.

GetVentilationPortDefault()

Result< VentilationPortDefault > ACAPI::MEP::v1::ElementDefault::GetVentilationPortDefault

(

uint32_t

portIndex

)

const

Parameters

portIndex

Zero-based index of Ports.

Returns

Returns an error if the index is out of range, or the corresponding Port is not of Ventilation domain.

Modifier()

ACAPI::MEP::v1::ElementDefault::Modifier ( ElementDefault &  parent )

protected

Constructs a Modifier with the given parent ElementDefault.

Parameters

parent

The parent ElementDefault.

Modify()

template<class ModifierFunc >

Result< void > ACAPI::MEP::v1::ElementDefault::Modify

(

ModifierFunc &&

modifierFunc

)

Executes the given modifier scope in a NotUndoable command.

Parameters

modifierFunc

The modifier scope (lambda, std::function or function pointer) the caller wants to execute.

Returns

Returns an error if the process of modification fails for some reason, otherwise nothing.

SetInsulationThickness()

Result< void > ACAPI::MEP::v1::ElementDefault::SetInsulationThickness

(

double

insulationThickness

)

Sets the thickness of insulation on the ElementDefault.

Parameters

insulationThickness

The value to be set.

Returns

Returns an error if the Element is of cable carrier domain, otherwise nothing.

SetObjectId()

void ACAPI::MEP::v1::ElementDefault::SetObjectId

(

const API_Guid &

libraryPartId

)

Sets the referenced library part of the ElementDefault.

Parameters

libraryPartId

The main GUID of the library part.
