ACAPI::MEP::v1::RoutingNodeDefault Class Reference

The RoutingNodeDefault contains the necessary non-geometric data for creating and modifying a Routing Node. More...

#include <MEPRoutingNodeDefault.hpp>

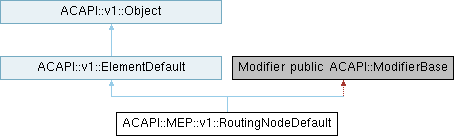

Inheritance diagram for ACAPI::MEP::v1::RoutingNodeDefault:

Public Member Functions
BendDefault	GetBendDefault () const
TransitionDefault	GetTransitionDefault () const
Domain	GetDomain () const
PreferredTransitionPlacement	GetPreferredTransitionPlacement () const
template<class ModifierFunc >
Result< void >	Modify (ModifierFunc &&modifierFunc)
	Executes the given modifier scope in a NotUndoable command.
void	SetBendDefault (const BendDefault &bendDefault) const
	Sets the BendDefault to the RoutingNodeDefault.
void	SetTransitionDefault (const TransitionDefault &transitionDefault) const
	Sets the TransitionDefault to the RoutingNodeDefault.
void	SetPreferredTransitionPlacement (PreferredTransitionPlacement preferredTransitionPlacement)
	Sets the rule of the Bend-Transition placement order of the RoutingNodeDefault.
Public Member Functions inherited from ACAPI::v1::ElementDefault
Result< void >	SetAsArchicadDefault () const
	Sets the locally prepared Default settings to the Archicad Default.
Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.
const API_Token &	GetToken () const
	Get the token for this object.

Protected Member Functions
	RoutingNodeDefault (std::shared_ptr< Impl::IRoutingNodeDefaultImpl > impl)
	Constructs a RoutingNodeDefault with the given implementation.
Protected Member Functions inherited from ACAPI::v1::ElementDefault
	ElementDefault (std::shared_ptr< Impl::ElementDefaultImpl > impl)
	Constructs a new ElementDefault.
Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.

Static Protected Member Functions
static Result< RoutingNodeDefault >	Create (const API_Token &token, Domain domain)
	Creates a RoutingNodeDefault with the given token and domain.

Friends
class	ACAPI::Impl::ObjectCreator
Result< RoutingNodeDefault >	CreateRoutingNodeDefault (Domain)
	Creates a RoutingNodeDefault.

Additional Inherited Members
Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

The RoutingNodeDefault contains the necessary non-geometric data for creating and modifying a Routing Node.

Since

Archicad 27

Example code snippet from Test / New MEP

Take a look at RoutingElementDefault RoutingNodeDefault Modification

    // PickUp RoutingElementDefault from RoutingElement
    RoutingElementDefault routingElementDefault = routingElement.PickUpDefault ();

    // Get RoutingNodeDefault of RoutingElementDefault and modify it
    RoutingNodeDefault routingNodeDefault = routingElementDefault.GetRoutingNodeDefault ();
    ACAPI::Result<void> nodeDefaultModifyResult = routingNodeDefault.Modify ([&](RoutingNodeDefault::Modifier& modifier) {
        modifier.SetPreferredTransitionPlacement (PreferredTransitionPlacement::LargeToSmall);
    });

    if (nodeDefaultModifyResult.IsErr ())
        return nodeDefaultModifyResult.UnwrapErr ().kind;

    // Get BendDefault and modify it
    BendDefault bendDefault = routingNodeDefault.GetBendDefault ();
    ACAPI::Result<void> bendDefaultModifyResult = bendDefault.Modify ([&](BendDefault::Modifier& modifier) {
        modifier.SetFactorRadius (0.6);
    });

    if (bendDefaultModifyResult.IsErr ())
        return bendDefaultModifyResult.UnwrapErr ().kind;

    // Get TransitionDefault and modify it
    TransitionDefault transitionDefault = routingNodeDefault.GetTransitionDefault ();
    ACAPI::Result<void> transitionDefaultModifyResult = transitionDefault.Modify ([&](TransitionDefault::Modifier& modifier) {
        modifier.SetAngle (35.0);
    });

    if (transitionDefaultModifyResult.IsErr ())
        return transitionDefaultModifyResult.UnwrapErr ().kind;

    // Set BendDefault and TransitionDefault back to RoutingNodeDefault
    ACAPI::Result<void> nodeDefaultSetBackResult = routingNodeDefault.Modify ([&](RoutingNodeDefault::Modifier& modifier) {
        modifier.SetBendDefault (bendDefault);
        modifier.SetTransitionDefault (transitionDefault);
    });

    if (nodeDefaultSetBackResult.IsErr ())
        return nodeDefaultSetBackResult.UnwrapErr ().kind;

    // Set RoutingNodeDefault back to RoutingElementDefault
    ACAPI::Result<void> elementDefaultModifyResult = routingElementDefault.Modify ([&](RoutingElementDefault::Modifier& modifier) {
        modifier.SetRoutingNodeDefault (routingNodeDefault);
    });

    if (elementDefaultModifyResult.IsErr ())
        return elementDefaultModifyResult.UnwrapErr ().kind;

    // Inject RoutingElementDefault into RoutingElement
    ACAPI::Result<void> injectResult = routingElement.Modify ([&routingElementDefault](RoutingElement::Modifier& modifier) {
        modifier.Inject (routingElementDefault);
    }, "Inject Default into RoutingElement.");

    if (injectResult.IsErr ())
        return injectResult.UnwrapErr ().kind;

    return NoError;

Constructor & Destructor Documentation

RoutingNodeDefault()

ACAPI::MEP::v1::RoutingNodeDefault::RoutingNodeDefault ( std::shared_ptr< Impl::IRoutingNodeDefaultImpl >  impl )

protected

Constructs a RoutingNodeDefault with the given implementation.

Parameters

impl	The given implementation.

Member Function Documentation

Create()

static Result< RoutingNodeDefault > ACAPI::MEP::v1::RoutingNodeDefault::Create ( const API_Token &  token, Domain  domain  )

staticprotected

Creates a RoutingNodeDefault with the given token and domain.

Parameters

token	The given token.
domain	The given domain.

Returns

The result of the creation with the created RoutingNodeDefault.

GetBendDefault()

BendDefault ACAPI::MEP::v1::RoutingNodeDefault::GetBendDefault

(

)

const

Returns

Returns the BendDefault of the RoutingNodeDefault.

GetDomain()

Domain ACAPI::MEP::v1::RoutingNodeDefault::GetDomain

(

)

const

Returns

Returns the domain of the default.

GetPreferredTransitionPlacement()

PreferredTransitionPlacement ACAPI::MEP::v1::RoutingNodeDefault::GetPreferredTransitionPlacement

(

)

const

Returns

Returns the rule of the Bend-Transition placement order of the RoutingNodeDefault.

GetTransitionDefault()

TransitionDefault ACAPI::MEP::v1::RoutingNodeDefault::GetTransitionDefault

(

)

const

Returns

Returns the TransitionDefault of the RoutingNodeDefault.

Modify()

template<class ModifierFunc >

Result< void > ACAPI::MEP::v1::RoutingNodeDefault::Modify

(

ModifierFunc &&

modifierFunc

)

Executes the given modifier scope in a NotUndoable command.

Parameters

modifierFunc

The modifier scope (lambda, std::function or function pointer) the caller wants to execute.

Returns

Returns an error if the process of modification fails for some reason, otherwise nothing.

SetBendDefault()

void ACAPI::MEP::v1::RoutingNodeDefault::SetBendDefault

(

const BendDefault &

bendDefault

)

const

Sets the BendDefault to the RoutingNodeDefault.

Parameters

bendDefault

The value to be set.

SetPreferredTransitionPlacement()

void ACAPI::MEP::v1::RoutingNodeDefault::SetPreferredTransitionPlacement

(

PreferredTransitionPlacement

preferredTransitionPlacement

)

Sets the rule of the Bend-Transition placement order of the RoutingNodeDefault.

Parameters

preferredTransitionPlacement

The rule to be set.

SetTransitionDefault()

void ACAPI::MEP::v1::RoutingNodeDefault::SetTransitionDefault

(

const TransitionDefault &

transitionDefault

)

const

Sets the TransitionDefault to the RoutingNodeDefault.

Parameters

transitionDefault

The value to be set.

Friends And Related Symbol Documentation

CreateRoutingNodeDefault

Result< RoutingNodeDefault > CreateRoutingNodeDefault ( Domain  domain )

friend

Creates a RoutingNodeDefault.

Parameters

domain

The Domain of the requested RoutingNodeDefault.

Returns

If able, returns a copy of Archicad's current Default of the RoutingNode from the RoutingElement tool for the domain defined by the parameter, otherwise Error.
