ACAPI::MEP::v1::RoutingElementDefault Class Reference

The RoutingElementDefault contains the necessary non-geometric data for creating a Routing element. More...

#include <MEPRoutingElementDefault.hpp>

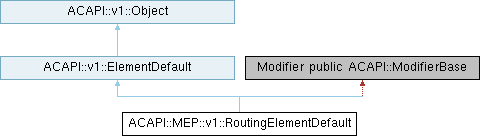

Inheritance diagram for ACAPI::MEP::v1::RoutingElementDefault:

Public Member Functions
RoutingSegmentDefault	GetRoutingSegmentDefault () const
RoutingNodeDefault	GetRoutingNodeDefault () const
Domain	GetDomain () const
	Retrieves the domain of the RoutingElementDefault.
API_AttributeIndex	GetMEPSystem () const
Result< UniqueID >	GetBranchPreferenceTableId () const
Result< UniqueID >	Place (const std::vector< API_Coord3D > &nodeCoordinates, const std::map< UInt32, RoutingSegmentRectangularCrossSectionData > &rectangularCrossSectionData, const std::map< UInt32, RoutingSegmentCircularCrossSectionData > &circularCrossSectionData, const std::optional< API_Guid > &requiredId=std::nullopt) const
	Places a Routing element based on the Default.
template<class ModifierFunc >
Result< void >	Modify (ModifierFunc &&modifierFunc)
	Executes the given modifier scope in a NotUndoable command.
void	SetRoutingSegmentDefault (const RoutingSegmentDefault &routingSegmentDefault)
	Sets the RoutingSegmentDefault of RoutingElement.
void	SetRoutingNodeDefault (const RoutingNodeDefault &routingNodeDefault)
	Sets the RoutingNodeDefault of RoutingElement.
Result< void >	SetMEPSystem (const API_AttributeIndex &attributeIndex)
	Sets the MEPSystem attribute of RoutingElement.
Result< void >	SetBranchPreferenceTableId (const UniqueID &uniqueId)
	Sets the Branch PreferenceTable of the RoutingElementDefault.
Public Member Functions inherited from ACAPI::v1::ElementDefault
Result< void >	SetAsArchicadDefault () const
	Sets the locally prepared Default settings to the Archicad Default.
Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.
const API_Token &	GetToken () const
	Get the token for this object.

Protected Member Functions
	RoutingElementDefault (std::shared_ptr< Impl::IRoutingElementDefaultImpl > impl)
	Constructs a RoutingElementDefault with the given implementation.
Protected Member Functions inherited from ACAPI::v1::ElementDefault
	ElementDefault (std::shared_ptr< Impl::ElementDefaultImpl > impl)
	Constructs a new ElementDefault.
Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.

Static Protected Member Functions
static Result< RoutingElementDefault >	Create (const API_Token &token, Domain domain)
	Creates a RoutingElementDefault with the given token and domain.

Friends
class	ACAPI::Impl::ObjectCreator
Result< RoutingElementDefault >	CreateRoutingElementDefault (Domain)
	Creates a RoutingElementDefault.

Additional Inherited Members
Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

The RoutingElementDefault contains the necessary non-geometric data for creating a Routing element.

Since

Archicad 27

Example code snippet from Test / New MEP

Pickup and Getters

    // Write Defaults
    RoutingElementDefault routingElementDefault = routingElement->PickUpDefault ();

    // Default Routing Segment
    routingElementReporter.AddNewLine ();
    routingElementReporter.Add ("Default Routing Segment:");
    routingElementReporter.SetTabCount (1);

    RoutingSegmentDefault routingSegmentDefault = routingElementDefault.GetRoutingSegmentDefault ();

    ConnectorShape shape = routingSegmentDefault.GetCrossSectionShape ();

    routingElementReporter.Add ("Table of dimensions ID", routingSegmentDefault.GetPreferenceTableId ());
    if (shape == ConnectorShape::Circular)
        routingElementReporter.Add ("Reference ID", *routingSegmentDefault.GetCrossSectionReferenceId ());

    routingElementReporter.Add ("Cross Section Shape", shape);
    routingElementReporter.Add ("Cross Section Width", routingSegmentDefault.GetCrossSectionWidth ());
    routingElementReporter.Add ("Cross Section Height", routingSegmentDefault.GetCrossSectionHeight ());
    routingElementReporter.Add ("Wall thickness", routingSegmentDefault.GetWallThickness ());

    routingElementReporter.Add ("Anchor", routingSegmentDefault.GetAnchor ());
    routingElementReporter.Add ("Offset X", routingSegmentDefault.GetReferenceLineOffsetX ());
    routingElementReporter.Add ("Offset Y", routingSegmentDefault.GetReferenceLineOffsetY ());

    ConnectionStyle style = routingSegmentDefault.GetConnectionStyle ();
    routingElementReporter.Add ("Connection style", style);

    if (style == ConnectionStyle::Flanged)
        routingElementReporter.Add (shape == ConnectorShape::Circular ? "Flange diameter" : "Flange width", *routingSegmentDefault.GetFlangeSize ());

    routingElementReporter.AddNewLine ();
    routingElementReporter.Add ("Default Rigid Segment:");
    routingElementReporter.SetTabCount (2);

    RigidSegmentDefault rigidSegmentDefault = routingSegmentDefault.GetRigidSegmentDefault ();
    routingElementReporter.Add ("Width", rigidSegmentDefault.GetWidth ());
    routingElementReporter.Add ("Height", rigidSegmentDefault.GetHeight ());
    routingElementReporter.Add ("Shape", rigidSegmentDefault.GetShape ());

    // Default Routing Node
    routingElementReporter.SetTabCount (0);
    routingElementReporter.AddNewLine ();
    routingElementReporter.Add ("Default Routing Node:");
    routingElementReporter.SetTabCount (1);

    RoutingNodeDefault routingNodeDefault = routingElementDefault.GetRoutingNodeDefault ();
    routingElementReporter.Add ("Preferred Transition Placement", routingNodeDefault.GetPreferredTransitionPlacement ());

    routingElementReporter.AddNewLine ();
    routingElementReporter.Add ("Default Bend:");
    routingElementReporter.SetTabCount (2);

    BendDefault bendDefault = routingNodeDefault.GetBendDefault ();
    if (bendDefault.GetDomain () != Domain::Piping)
        routingElementReporter.Add ("Factor Radius", *bendDefault.GetFactorRadius ());

    routingElementReporter.SetTabCount (1);
    routingElementReporter.AddNewLine ();
    routingElementReporter.Add ("Default Transition:");
    routingElementReporter.SetTabCount (2);

    TransitionDefault transitionDefault = routingNodeDefault.GetTransitionDefault ();
    if (transitionDefault.GetDomain () != Domain::Piping)
        routingElementReporter.Add ("Angle", *transitionDefault.GetAngle ());

    routingElementReporter.Add ("Offset Y", transitionDefault.GetOffsetY ());
    routingElementReporter.Add ("Offset Z", transitionDefault.GetOffsetZ ());

    routingElementReporter.Write ();

Assemble placement data

    std::vector<API_Coord3D> referenceCoords1;
    referenceCoords1.push_back ({ 0.0, 0.0, 2.0 });
    referenceCoords1.push_back ({ 5.0, 0.0, 2.0 });
    referenceCoords1.push_back ({ 5.0, 5.0, 2.0 });
    referenceCoords1.push_back ({ 10.0, 5.0, 2.0 });
    referenceCoords1.push_back ({ 10.0, 10.0, 2.0 });

    std::map<UInt32, ACAPI::MEP::RoutingSegmentRectangularCrossSectionData> rectangularCrossSectionData1;
    std::map<UInt32, ACAPI::MEP::RoutingSegmentCircularCrossSectionData> circularCrossSectionData1;

    std::vector<API_Coord3D> referenceCoords2;
    referenceCoords2.push_back ({ 10.0, 10.0, 2.0 });
    referenceCoords2.push_back ({ 15.0, 10.0, 2.0 });
    referenceCoords2.push_back ({ 15.0, 15.0, 2.0 });

    std::map<UInt32, ACAPI::MEP::RoutingSegmentRectangularCrossSectionData> rectangularCrossSectionData2;
    std::map<UInt32, ACAPI::MEP::RoutingSegmentCircularCrossSectionData> circularCrossSectionData2;

    circularCrossSectionData2.emplace (0, ACAPI::MEP::RoutingSegmentCircularCrossSectionData (20));
    circularCrossSectionData2.emplace (1, ACAPI::MEP::RoutingSegmentCircularCrossSectionData (20));

    return PlaceRoutesAndConnect ({ { referenceCoords1, std::make_pair (rectangularCrossSectionData1, circularCrossSectionData1) }, { referenceCoords2, std::make_pair (rectangularCrossSectionData2, circularCrossSectionData2) } }, Domain::Piping);

Placement

    std::vector<UniqueID> routeIds;
    routeIds.reserve (placementData.size ());

    ACAPI::Result<RoutingElementDefault> routingElementDefault = CreateRoutingElementDefault (domain);
    if (routingElementDefault.IsErr ())
        return { routingElementDefault.UnwrapErr (), ACAPI_GetToken () };

    for (const auto& [referenceCoords, crossSectionDataMaps] : placementData) {

        // Optionally, you could provide a GUID for the placed route with a third parameter
        ACAPI::Result<UniqueID> routingElemId = routingElementDefault->Place (referenceCoords, crossSectionDataMaps.first, crossSectionDataMaps.second);
        if (routingElemId.IsErr ())
            return { routingElemId.UnwrapErr (), ACAPI_GetToken () };

        routeIds.emplace_back (*routingElemId);
    }

    return ACAPI::Ok (std::move (routeIds));

Constructor & Destructor Documentation

RoutingElementDefault()

ACAPI::MEP::v1::RoutingElementDefault::RoutingElementDefault ( std::shared_ptr< Impl::IRoutingElementDefaultImpl >  impl )

protected

Constructs a RoutingElementDefault with the given implementation.

Parameters

impl	The given implementation.

Member Function Documentation

Create()

static Result< RoutingElementDefault > ACAPI::MEP::v1::RoutingElementDefault::Create ( const API_Token &  token, Domain  domain  )

staticprotected

Creates a RoutingElementDefault with the given token and domain.

Parameters

token	The given token.
domain	The given domain.

Returns

The result with the created RoutingElementDefault.

GetBranchPreferenceTableId()

Result< UniqueID > ACAPI::MEP::v1::RoutingElementDefault::GetBranchPreferenceTableId

(

)

const

Returns

Returns the UniqueID of the Branch PreferenceTable of a Duct or Pipe RoutingElementDefault, in case of Cable Carrier returns Error.

GetDomain()

Domain ACAPI::MEP::v1::RoutingElementDefault::GetDomain

(

)

const

Retrieves the domain of the RoutingElementDefault.

Returns

The domain of the RoutingElementDefault.

GetMEPSystem()

API_AttributeIndex ACAPI::MEP::v1::RoutingElementDefault::GetMEPSystem

(

)

const

Returns

Returns the MEPSystem attribute of the RoutingElementDefault.

GetRoutingNodeDefault()

RoutingNodeDefault ACAPI::MEP::v1::RoutingElementDefault::GetRoutingNodeDefault

(

)

const

Returns

Returns the RoutingNodeDefault of the RoutingElementDefault.

GetRoutingSegmentDefault()

RoutingSegmentDefault ACAPI::MEP::v1::RoutingElementDefault::GetRoutingSegmentDefault

(

)

const

Returns

Returns the RoutingSegmentDefault of the RoutingElementDefault.

Modify()

template<class ModifierFunc >

Result< void > ACAPI::MEP::v1::RoutingElementDefault::Modify

(

ModifierFunc &&

modifierFunc

)

Executes the given modifier scope in a NotUndoable command.

Parameters

modifierFunc

The modifier scope (lambda, std::function or function pointer) the caller wants to execute.

Returns

Returns an error if the process of modification fails for some reason, otherwise nothing.

Place()

Result< UniqueID > ACAPI::MEP::v1::RoutingElementDefault::Place	(	const std::vector< API_Coord3D > &	nodeCoordinates,
		const std::map< UInt32, RoutingSegmentRectangularCrossSectionData > &	rectangularCrossSectionData,
		const std::map< UInt32, RoutingSegmentCircularCrossSectionData > &	circularCrossSectionData,
		const std::optional< API_Guid > &	requiredId = std::nullopt
	)		const

Places a Routing element based on the Default.

The implementation creates an Undoable Command Scope before executing the placement. This Command Scope is automatically closed after execution. When someone would like to group the placement of several RoutingElements and/or MEP elements together, it is recommended to create a single Command Scope. Doing this prevents the opening and closing of a Command Scope for every single created RoutingElement and/or MEP element, therefore the performance should be improved.

Parameters

nodeCoordinates	List of coordinates for the corner points of RoutingElement.
rectangularCrossSectionData	List of data for the rectangular cross sections of the RoutingSegments.
circularCrossSectionData	List of data for the circular cross sections of the RoutingSegments.
requiredId	The guid to be set for the RoutingElement - optional parameter

Returns

If executed with success, returns the newly placed RoutingElement's uniqueId, otherwise Error.

SetBranchPreferenceTableId()

Result< void > ACAPI::MEP::v1::RoutingElementDefault::SetBranchPreferenceTableId

(

const UniqueID &

uniqueId

)

Sets the Branch PreferenceTable of the RoutingElementDefault.

Parameters

uniqueId

The UniqueID of the Branch PreferenceTable.

Returns

Returns an error if the parameter does not identify a Branch PreferenceTable, otherwise nothing.

SetMEPSystem()

Result< void > ACAPI::MEP::v1::RoutingElementDefault::SetMEPSystem

(

const API_AttributeIndex &

attributeIndex

)

Sets the MEPSystem attribute of RoutingElement.

Parameters

attributeIndex

The MEPSystem AttributeIndex to be set.

Returns

The result of the setting.

SetRoutingNodeDefault()

void ACAPI::MEP::v1::RoutingElementDefault::SetRoutingNodeDefault

(

const RoutingNodeDefault &

routingNodeDefault

)

Sets the RoutingNodeDefault of RoutingElement.

Parameters

routingNodeDefault

The default to be set.

SetRoutingSegmentDefault()

void ACAPI::MEP::v1::RoutingElementDefault::SetRoutingSegmentDefault

(

const RoutingSegmentDefault &

routingSegmentDefault

)

Sets the RoutingSegmentDefault of RoutingElement.

Parameters

routingSegmentDefault

The default to be set.

Friends And Related Symbol Documentation

CreateRoutingElementDefault

Result< RoutingElementDefault > CreateRoutingElementDefault ( Domain  domain )

friend

Creates a RoutingElementDefault.

Parameters

domain

The Domain of the requested RoutingElementDefault.

Returns

If able, returns a copy of Archicad's current Default of the RoutingElement tool for the domain defined by the parameter, otherwise Error.
