In contrast to rigid segments flexible duct is not a connection of multiple elements (straight segments and bends), instead a type of ducting pipe that could easily be bent in different angles. Since Archicad 28 there is a flexible pipe as well for liquids. FlexibleSegment either has a spline geometry defined by control points, or a polyline geometry, which is defined by alternating straight line parts and spline parts. Line parts are defined by their starting and ending coordinates, while spline parts are defined by control points. These alterning segments must start where the previous one ends. Polyline FlexibleSegemnts are only supported in the Piping domain. In the Ventilation domain FlexibleSegments can only be splines. More...

#include <MEPFlexibleSegment.hpp>

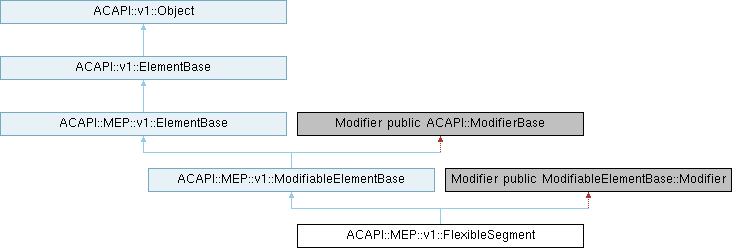

Inheritance diagram for ACAPI::MEP::v1::FlexibleSegment:

Public Member Functions
FlexibleSegmentDefault	PickUpDefault () const
	Picks up the Default from the FlexibleSegment.

double	GetWidth () const

double	GetHeight () const

Result< std::vector< API_Coord3D > >	GetControlPoints () const

Result< FlexibleSegmentPolyline >	GetPolyline () const

Domain	GetDomain () const
	Returns the domain of the FlexibleSegment.

template<typename ModifierFunc >
Result< void >	Modify (const ModifierFunc &modifierFunc, const GS::UniString &undoString)
	Executes the passed modifier scope in an Undoable command.

Result< void >	Inject (const FlexibleSegmentDefault &flexibleSegmentDefault)
	Injects the Default settings into the FlexibleSegment.

Result< void >	SetControlPoints (const std::vector< API_Coord3D > &controlPoints)
	Sets the FlexibleSegment's geometry to a spline.

Result< void >	SetPolyline (const FlexibleSegmentPolyline &polyline)
	Sets the FlexibleSegment's geometry to a polyline.

Result< void >	SetWidth (double width)
	Sets the width of the FlexibleSegment.

Result< void >	SetHeight (double height)
	Sets the height of the FlexibleSegment.

Public Member Functions inherited from ACAPI::MEP::v1::ModifiableElementBase
template<typename ModifierFunc >
Result< void >	Modify (const ModifierFunc &modifierFunc, const GS::UniString &undoString)
	Executes the passed modifier scope in an Undoable command.

void	SetAnchorPoint (const API_Coord3D &anchorPoint)
	Sets the anchor point of the ModifiableElement.

void	SetOrientation (const MEP::Orientation &orientation)
	Sets the orientation of the ModifiableElement.

void	SetObjectId (const API_Guid &libraryPartId)
	Sets the referenced library part of the ModifiableElement.

Public Member Functions inherited from ACAPI::MEP::v1::ElementBase
bool	Exists () const

std::vector< UniqueID >	GetPortIDs () const

std::vector< UniqueID >	GetDirectConnectedMEPElementIds () const

API_Coord3D	GetAnchorPoint () const

Orientation	GetOrientation () const

API_Guid	GetObjectId () const

Public Member Functions inherited from ACAPI::v1::ElementBase
UniqueID	GetElemId () const
	Get unique identifier of the ElementBase object.

Result< void >	IsEditable () const
	Checks whether the element is editable.

Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.

const API_Token &	GetToken () const
	Get the token for this object.

Static Public Member Functions
static Result< FlexibleSegment >	Get (const UniqueID &uniqueId)
	Returns a FlexibleSegment.

Additional Inherited Members
Protected Member Functions inherited from ACAPI::MEP::v1::ModifiableElementBase
	ModifiableElementBase (std::shared_ptr< Impl::IElementBaseImpl > impl)
	Constructs a ModifiableElementBase with the IElementBaseImpl.

	Modifier (ModifiableElementBase &parent)
	Constructs a Modifier with the parent ModifiableElementBase.

void	FinalizeModification () override
	Finalizes the modifications.

Protected Member Functions inherited from ACAPI::MEP::v1::ElementBase
	ElementBase (std::shared_ptr< Impl::IElementBaseImpl > impl)
	Constructs an ElementBase with an element base implementation.

Protected Member Functions inherited from ACAPI::v1::ElementBase
	ElementBase (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new ElementBase.

Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.

Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

In contrast to rigid segments flexible duct is not a connection of multiple elements (straight segments and bends), instead a type of ducting pipe that could easily be bent in different angles. Since Archicad 28 there is a flexible pipe as well for liquids. FlexibleSegment either has a spline geometry defined by control points, or a polyline geometry, which is defined by alternating straight line parts and spline parts. Line parts are defined by their starting and ending coordinates, while spline parts are defined by control points. These alterning segments must start where the previous one ends. Polyline FlexibleSegemnts are only supported in the Piping domain. In the Ventilation domain FlexibleSegments can only be splines.

Since: Archicad 27

Example code snippet from Test / New MEP: Getters
ACAPI::Result<FlexibleSegment> flexibleSegment = FlexibleSegment::Get (id);

if (flexibleSegment.IsErr ()) {

ACAPI_WriteReport (flexibleSegment.UnwrapErr ().text.c_str (), false);

return;

}

Reporter reporter;

reporter.SetTabCount (0);

reporter.Add ("Control points:");

reporter.SetTabCount (1);

ACAPI::Result<std::vector<API_Coord3D>> controlPoints = flexibleSegment->GetControlPoints ();

if (controlPoints.IsErr ()) {

ACAPI_WriteReport (controlPoints.UnwrapErr ().text.c_str (), false);

return;

}

for (const API_Coord3D& controlPoint : *controlPoints)

reporter.Add (ToString (controlPoint));

reporter.AddNewLine ();

ACAPI::MEP::v1::FlexibleSegment::Get
static Result< FlexibleSegment > Get(const UniqueID &uniqueId)
Returns a FlexibleSegment.

ACAPI::Result
Result is the standard return type of API functions.
Definition: Result.hpp:845

ACAPI::Result::UnwrapErr
E UnwrapErr() const
Unwraps the error value contained in the Result. Trying to UnwrapErr the value while it contains an O...
Definition: Result.hpp:1140

ACAPI::Result::IsErr
bool IsErr() const
Definition: Result.hpp:945

ACAPI_WriteReport
void ACAPI_WriteReport(const GS::UniString &format, bool withDial,...)
Writes a report string into the Report Windowot into a custom alert window.

API_Coord3D
Real (Cartesian) 3D coordinates of a three-dimensional space.
Definition: APIdefs_Base.h:108

Modification
ACAPI::Result<FlexibleSegment> flexibleSegment = FlexibleSegment::Get (id);

if (flexibleSegment.IsErr ()) {

ACAPI_WriteReport (flexibleSegment.UnwrapErr ().text.c_str (), false);

return flexibleSegment.UnwrapErr ().kind;

}

if (ACAPI::Result<std::vector<API_Coord3D>> controlPoints = flexibleSegment->GetControlPoints (); controlPoints.IsOk ()) {

for (API_Coord3D& controlPoint : *controlPoints)

controlPoint.x += 1.0;

ACAPI::Result<void> modifyResult = flexibleSegment->Modify ([&](FlexibleSegment::Modifier& modifier) {

modifier.SetControlPoints (*controlPoints);

}, "Modify the control points of Flexible Segment.");

} else if (ACAPI::Result<FlexibleSegmentPolyline> polyline = flexibleSegment->GetPolyline (); polyline.IsOk ()) {

for (std::variant<FlexibleSegmentPolylineLinePart, FlexibleSegmentPolylineSplinePart>& polylinePart : *polyline) {

std::visit (GS::Overloaded {

[] (FlexibleSegmentPolylineLinePart& line) {

line.begin.x *= 2.0;

line.begin.y *= 2.0;

line.begin.z *= 2.0;

line.end.x *= 2.0;

line.end.y *= 2.0;

line.end.z *= 2.0;

},

[] (FlexibleSegmentPolylineSplinePart& spline) {

for (API_Coord3D& controlPoint : spline.controlPoints) {

controlPoint.x *= 2.0;

controlPoint.y *= 2.0;

controlPoint.z *= 2.0;

}

}

}, polylinePart);

}

ACAPI::Result<void> modifyResult = flexibleSegment->Modify ([&](FlexibleSegment::Modifier& modifier) {

modifier.SetPolyline (*polyline);

}, "Modify the polyline of Flexible Segment.");

} else {

return Error;

}

return NoError;

ACAPI::Result::IsOk
bool IsOk() const
Definition: Result.hpp:940

Member Function Documentation

◆ Get()

static Result< FlexibleSegment > ACAPI::MEP::v1::FlexibleSegment::Get ( const UniqueID & uniqueId )

static

Returns a FlexibleSegment.

Parameters

uniqueId The UniqueID of the requested FlexibleSegment.

Returns: If the uniqueId belongs to a FlexibleSegment, returns the object associated to it, otherwise Error.

◆ GetControlPoints()

Result< std::vector< API_Coord3D > > ACAPI::MEP::v1::FlexibleSegment::GetControlPoints ( ) const

Returns: Returns the control points of the FlexibleSegment if it is defined by a spline.

◆ GetDomain()

Domain ACAPI::MEP::v1::FlexibleSegment::GetDomain ( ) const

Returns the domain of the FlexibleSegment.

Returns: The returned domain could only be ventilation.

◆ GetHeight()

double ACAPI::MEP::v1::FlexibleSegment::GetHeight ( ) const

Returns: Returns the height of the FlexibleSegment.

◆ GetPolyline()

Result< FlexibleSegmentPolyline > ACAPI::MEP::v1::FlexibleSegment::GetPolyline ( ) const

Returns: Returns the polyline of the FlexibleSegment if it is defined by a polyline .

◆ GetWidth()

double ACAPI::MEP::v1::FlexibleSegment::GetWidth ( ) const

Returns: Returns the width of the FlexibleSegment.

◆ Inject()

Result< void > ACAPI::MEP::v1::FlexibleSegment::Inject ( const FlexibleSegmentDefault & flexibleSegmentDefault )

Injects the Default settings into the FlexibleSegment.

Parameters

flexibleSegmentDefault The Default what will be injected.

Returns: Returns an error if the injection fails for some reason, otherwise nothing.

◆ Modify()

template<typename ModifierFunc >

Result< void > ACAPI::MEP::v1::FlexibleSegment::Modify	(	const ModifierFunc &	modifierFunc,
		const GS::UniString &	undoString
	)

Executes the passed modifier scope in an Undoable command.

Parameters

modifierFunc	The modifier scope (lambda, std::function or function pointer) the caller wants to execute.
undoString	The text which appears in the undo queue of Archicad after executing the command.

Returns: Returns an error if the process of modification fails for some reason, otherwise nothing.

◆ PickUpDefault()

FlexibleSegmentDefault ACAPI::MEP::v1::FlexibleSegment::PickUpDefault ( ) const

Picks up the Default from the FlexibleSegment.

Returns: Returns a FlexibleSegmentDefault with the parameters of the object it was called for.

◆ SetControlPoints()

Result< void > ACAPI::MEP::v1::FlexibleSegment::SetControlPoints ( const std::vector< API_Coord3D > & controlPoints )

Sets the FlexibleSegment's geometry to a spline.

Parameters

controlPoints The control points of the spline to be set.

Returns

Returns an error if the points are invalid, for example:

Control points are empty.
Two adjacent points at the same location.

◆ SetHeight()

Result< void > ACAPI::MEP::v1::FlexibleSegment::SetHeight ( double height )

Sets the height of the FlexibleSegment.

Parameters

height The value to be set.

Returns: Returns an error if the height is not positive, otherwise nothing.

◆ SetPolyline()

Result< void > ACAPI::MEP::v1::FlexibleSegment::SetPolyline ( const FlexibleSegmentPolyline & polyline )

Sets the FlexibleSegment's geometry to a polyline.

Parameters

polyline The polyline to be set.

Returns

Returns an error if the polyline is invalid, for example:

Polyline is empty.
Adjacent segments are of the same type.
Adjacent starting/ending points don't connect.
Setting polyline geometry on a Ventillation FlexibleSegment.

◆ SetWidth()

Result< void > ACAPI::MEP::v1::FlexibleSegment::SetWidth ( double width )

Sets the width of the FlexibleSegment.

Parameters

width The value to be set.

Returns: Returns an error if the width is not positive, otherwise nothing.
