The RoutingSegment can contain Rigid Segment elements. More...

#include <MEPRoutingSegment.hpp>

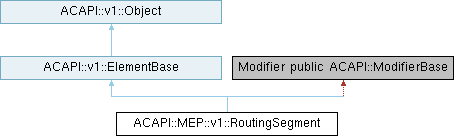

Inheritance diagram for ACAPI::MEP::v1::RoutingSegment:

Public Member Functions
double	GetCrossSectionWidth () const

double	GetCrossSectionHeight () const

ConnectorShape	GetCrossSectionShape () const

Result< uint32_t >	GetCrossSectionReferenceId () const

std::vector< UniqueID >	GetRigidSegmentIds () const

UniqueID	GetBeginNodeId () const

UniqueID	GetEndNodeId () const

UniqueID	GetRoutingElementId () const

Domain	GetDomain () const

RoutingSegmentDefault	PickUpDefault () const
	Picks up and returns the Default of the RoutingSegment.

RigidSegmentDefault	GetRigidSegmentDefaultParameters () const

UniqueID	GetPreferenceTableId () const

API_AnchorID	GetAnchor () const

double	GetReferenceLineOffsetX () const

double	GetReferenceLineOffsetY () const

double	GetWallThickness () const

ConnectionStyle	GetConnectionStyle () const

std::optional< double >	GetFlangeSize () const

template<typename ModifierFunc >
Result< void >	Modify (const ModifierFunc &modifierFunc, const GS::UniString &undoString)
	Executes the passed modifier scope in an Undoable command.

Result< void >	SetCrossSectionWidth (double width)
	Sets the width of the RoutingSegment.

Result< void >	SetCrossSectionHeight (double height)
	Sets the height of the Routing Segment.

Result< void >	SetCrossSectionShape (ConnectorShape shape)
	Sets the shape of the Routing Segment.

Result< void >	SetCrossSectionReferenceId (uint32_t referenceId)
	Sets the referenceId of Circular Cross Section in the Routing Segment.

Result< void >	Inject (const RoutingSegmentDefault &routingSegmentDefault)
	Injects the given Default settings to the RoutingSegment.

Result< void >	SetRigidSegmentDefaultParameters (const RigidSegmentDefault &rigidSegmentDefault)
	Sets the parameters of the RigidSegments.

Result< void >	SetPreferenceTableId (const UniqueID &uniqueId)
	Sets the PreferenceTable of the RoutingSegment.

void	SetAnchor (API_AnchorID anchor)
	Sets the anchor position of the RoutingSegment.

void	SetReferenceLineOffsetX (double offset)
	Sets the offset from the reference line along the X-axis of cross-section's plane.

void	SetReferenceLineOffsetY (double offset)
	Sets the offset from the reference line along the Y-axis of cross-section's plane.

Result< void >	SetWallThickness (double thickness)
	Sets the wall thickness of the RoutingSegment.

Result< void >	SetConnectionStyle (ConnectionStyle connectionStyle)
	Sets the connection style of the RoutingSegment.

Result< void >	SetFlangeSize (double flangeSize)
	Sets the flange size (width for Ventilation, diameter for Piping) of the RoutingSegment if its connection style is Flanged.

Public Member Functions inherited from ACAPI::v1::ElementBase
UniqueID	GetElemId () const
	Get unique identifier of the ElementBase object.

Result< void >	IsEditable () const
	Checks whether the element is editable.

Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.

const API_Token &	GetToken () const
	Get the token for this object.

Static Public Member Functions
static Result< RoutingSegment >	Get (const UniqueID &uniqueId)
	Returns a Routing Segment.

Additional Inherited Members
Protected Member Functions inherited from ACAPI::v1::ElementBase
	ElementBase (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new ElementBase.

Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.

Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

The RoutingSegment can contain Rigid Segment elements.

This type of element is placed between the corner points of RoutingElement.

Since: Archicad 27

Example code snippet from Test / New MEP: Getters
ACAPI::Result<RoutingSegment> routingSegment = RoutingSegment::Get (id);

if (routingSegment.IsErr ()) {

ACAPI_WriteReport (routingSegment.UnwrapErr ().text.c_str (), false);

return;

}

Reporter routingSegmentReporter (1);

routingSegmentReporter.Add ("Routing Segment", id);

routingSegmentReporter.SetTabCount (2);

ConnectorShape shape = routingSegment->GetCrossSectionShape ();

routingSegmentReporter.Add ("Table of dimensions ID", routingSegment->GetPreferenceTableId ());

if (shape == ConnectorShape::Circular)

routingSegmentReporter.Add ("Reference ID", *routingSegment->GetCrossSectionReferenceId ());

routingSegmentReporter.Add ("Cross Section Shape", shape);

routingSegmentReporter.Add ("Cross Section Width", routingSegment->GetCrossSectionWidth ());

routingSegmentReporter.Add ("Cross Section Height", routingSegment->GetCrossSectionHeight ());

routingSegmentReporter.Add ("Wall thickness", routingSegment->GetWallThickness ());

routingSegmentReporter.Add ("Anchor", routingSegment->GetAnchor ());

routingSegmentReporter.Add ("Offset X", routingSegment->GetReferenceLineOffsetX ());

routingSegmentReporter.Add ("Offset Y", routingSegment->GetReferenceLineOffsetY ());

ConnectionStyle style = routingSegment->GetConnectionStyle ();

routingSegmentReporter.Add ("Connection style", style);

if (style == ConnectionStyle::Flanged)

routingSegmentReporter.Add (shape == ConnectorShape::Circular ? "Flange diameter" : "Flange width", *routingSegment->GetFlangeSize ());

routingSegmentReporter.Add ("Guid of Begin Node", routingSegment->GetBeginNodeId ());

routingSegmentReporter.Add ("Guid of End Node", routingSegment->GetEndNodeId ());

routingSegmentReporter.Write ();

// Rigid Segments

std::vector<UniqueID> rigidSegmentIds = routingSegment->GetRigidSegmentIds ();

if (!rigidSegmentIds.empty ()) {

ACAPI_WriteReport ("\t\tList of Rigid Segments:\n", false);

for (const UniqueID& id : rigidSegmentIds)

WriteRigidSegmentDetails (id);

}

ACAPI::MEP::UniqueID
The MEP unique identifier.
Definition: MEPUniqueID.hpp:30

ACAPI::MEP::v1::RoutingSegment::GetFlangeSize
std::optional< double > GetFlangeSize() const

ACAPI::MEP::v1::RoutingSegment::Get
static Result< RoutingSegment > Get(const UniqueID &uniqueId)
Returns a Routing Segment.

ACAPI::Result
Result is the standard return type of API functions.
Definition: Result.hpp:845

ACAPI::Result::UnwrapErr
E UnwrapErr() const
Unwraps the error value contained in the Result. Trying to UnwrapErr the value while it contains an O...
Definition: Result.hpp:1140

ACAPI::Result::IsErr
bool IsErr() const
Definition: Result.hpp:945

ACAPI_WriteReport
void ACAPI_WriteReport(const GS::UniString &format, bool withDial,...)
Writes a report string into the Report Windowot into a custom alert window.

ACAPI::MEP::ConnectionStyle
ConnectionStyle
Style of the connection.
Definition: MEPEnums.hpp:41

ACAPI::MEP::ConnectorShape
ConnectorShape
Shape of the connector.
Definition: MEPEnums.hpp:28

Modification - Rectangular
double currentWidth = routingSegment.GetCrossSectionWidth ();

double currentHeight = routingSegment.GetCrossSectionHeight ();

ACAPI::Result<void> modifyResult = routingSegment.Modify ([&](RoutingSegment::Modifier& modifier) {

modifier.SetCrossSectionWidth (0.5 * currentWidth);

modifier.SetCrossSectionHeight (0.5 * currentHeight);

}, "Modify the dimensions of Cross Section of Routing Segment.");

if (modifyResult.IsErr ())

return modifyResult.UnwrapErr ().kind;

return NoError;

Modification - Circular
uint32_t newReferenceId = 63;

ACAPI::Result<void> modifyResult = routingSegment.Modify ([&](RoutingSegment::Modifier& modifier) {

modifier.SetCrossSectionReferenceId (newReferenceId);

}, "Modify the referenceId of Cross Section of Routing Segment.");

if (modifyResult.IsErr ())

return modifyResult.UnwrapErr ().kind;

return NoError;

Member Function Documentation

◆ Get()

static Result< RoutingSegment > ACAPI::MEP::v1::RoutingSegment::Get ( const UniqueID & uniqueId )

static

Returns a Routing Segment.

Parameters

uniqueId The UniqueID of the requested RoutingSegment.

Returns: If the uniqueId belongs to a RoutingSegment, returns the object associated to it, otherwise Error.

◆ GetAnchor()

API_AnchorID ACAPI::MEP::v1::RoutingSegment::GetAnchor ( ) const

Returns: Returns the anchor position of the RoutingSegment.

◆ GetBeginNodeId()

UniqueID ACAPI::MEP::v1::RoutingSegment::GetBeginNodeId ( ) const

Returns: Returns the UniqueID of the RoutingNode from which the RoutingSegment starts.

◆ GetConnectionStyle()

ConnectionStyle ACAPI::MEP::v1::RoutingSegment::GetConnectionStyle ( ) const

Returns: Returns the connection style used by the RigidSegment's Ports.

◆ GetCrossSectionHeight()

double ACAPI::MEP::v1::RoutingSegment::GetCrossSectionHeight ( ) const

Returns: Returns the height of the RoutingSegment.

◆ GetCrossSectionReferenceId()

Result< uint32_t > ACAPI::MEP::v1::RoutingSegment::GetCrossSectionReferenceId ( ) const

Returns: Returns error if the Cross Section shape is Rectangular, otherwise the referenceId of the Circular Cross Section in the RoutingSegment.

◆ GetCrossSectionShape()

ConnectorShape ACAPI::MEP::v1::RoutingSegment::GetCrossSectionShape ( ) const

Returns: Returns the shape of the RoutingSegment.

◆ GetCrossSectionWidth()

double ACAPI::MEP::v1::RoutingSegment::GetCrossSectionWidth ( ) const

Returns: Returns the width of the RoutingSegment.

◆ GetDomain()

Domain ACAPI::MEP::v1::RoutingSegment::GetDomain ( ) const

Returns: Returns the domain of the RoutingSegment.

◆ GetEndNodeId()

UniqueID ACAPI::MEP::v1::RoutingSegment::GetEndNodeId ( ) const

Returns: Returns the UniqueID of the RoutingNode at which the RoutingSegment ends.

◆ GetFlangeSize()

std::optional< double > ACAPI::MEP::v1::RoutingSegment::GetFlangeSize ( ) const

Returns: Returns the size of the flange (width for Ventilation, diameter for Piping) if the connection style is Flanged.

◆ GetPreferenceTableId()

UniqueID ACAPI::MEP::v1::RoutingSegment::GetPreferenceTableId ( ) const

Returns: Returns the UniqueID of the PreferenceTable is associated with.

◆ GetReferenceLineOffsetX()

double ACAPI::MEP::v1::RoutingSegment::GetReferenceLineOffsetX ( ) const

Returns: Returns the offset from the reference line along the X-axis of cross-section's plane.

◆ GetReferenceLineOffsetY()

double ACAPI::MEP::v1::RoutingSegment::GetReferenceLineOffsetY ( ) const

Returns: Returns the offset from the reference line along the Y-axis of cross-section's plane.

◆ GetRigidSegmentDefaultParameters()

RigidSegmentDefault ACAPI::MEP::v1::RoutingSegment::GetRigidSegmentDefaultParameters ( ) const

Returns: Returns the default parameters of the uncustomized RigidSegments.

◆ GetRigidSegmentIds()

std::vector< UniqueID > ACAPI::MEP::v1::RoutingSegment::GetRigidSegmentIds ( ) const

Returns: Returns the UniqueIDs of the RigidSegments contained by the RoutingSegment.

◆ GetRoutingElementId()

UniqueID ACAPI::MEP::v1::RoutingSegment::GetRoutingElementId ( ) const

Returns: Returns the UniqueID of the RoutingElement that it belongs to.

◆ GetWallThickness()

double ACAPI::MEP::v1::RoutingSegment::GetWallThickness ( ) const

Returns: Returns the wall thickness of the RoutingSegment. The RigidSegment's Port will use this value as well.

◆ Inject()

Result< void > ACAPI::MEP::v1::RoutingSegment::Inject ( const RoutingSegmentDefault & routingSegmentDefault )

Injects the given Default settings to the RoutingSegment.

Parameters

routingSegmentDefault The Default which will be injected.

Returns: Returns an error if the injection fails for some reason, otherwise nothing.

◆ Modify()

template<typename ModifierFunc >

Result< void > ACAPI::MEP::v1::RoutingSegment::Modify	(	const ModifierFunc &	modifierFunc,
		const GS::UniString &	undoString
	)

Executes the passed modifier scope in an Undoable command.

Parameters

modifierFunc	The modifier scope (lambda, std::function or function pointer) the caller wants to execute.
undoString	The text which appears in the undo queue of Archicad after executing the command.

Returns: Returns an error if the process of modification fails for some reason, otherwise nothing.

◆ PickUpDefault()

RoutingSegmentDefault ACAPI::MEP::v1::RoutingSegment::PickUpDefault ( ) const

Picks up and returns the Default of the RoutingSegment.

Returns: Returns a RoutingSegmentDefault with the parameters of the object it was called for.

◆ SetAnchor()

void ACAPI::MEP::v1::RoutingSegment::SetAnchor ( API_AnchorID anchor )

Sets the anchor position of the RoutingSegment.

Parameters

anchor The value to be set.

◆ SetConnectionStyle()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetConnectionStyle ( ConnectionStyle connectionStyle )

Sets the connection style of the RoutingSegment.

Parameters

connectionStyle The value to be set.

Returns: Returns an error if the RoutingSegment's domain does not support the provided connection style, otherwise nothing.

◆ SetCrossSectionHeight()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetCrossSectionHeight ( double height )

Sets the height of the Routing Segment.

Parameters

height The value to be set.

Returns: Returns error if the Cross Section Shape is Circular, otherwise nothing.

◆ SetCrossSectionReferenceId()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetCrossSectionReferenceId ( uint32_t referenceId )

Sets the referenceId of Circular Cross Section in the Routing Segment.

Parameters

referenceId The referenceId of the row from the Segment PreferenceTable. Only the valid row's ReferenceId can be set.

Returns: Returns an error if the Cross Section Shape is not Circular or the referenceId is not a valid row of the actual preferenceTable, otherwise nothing.

◆ SetCrossSectionShape()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetCrossSectionShape ( ConnectorShape shape )

Sets the shape of the Routing Segment.

Parameters

shape The value to be set.

Returns: Returns error if the shape is not supported by the RoutingSegment, otherwise nothing.

◆ SetCrossSectionWidth()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetCrossSectionWidth ( double width )

Sets the width of the RoutingSegment.

Parameters

width The value to be set.

Returns: Returns error if the Cross Section Shape is Circular, otherwise nothing.

◆ SetFlangeSize()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetFlangeSize ( double flangeSize )

Sets the flange size (width for Ventilation, diameter for Piping) of the RoutingSegment if its connection style is Flanged.

Parameters

flangeSize The value to be set.

Returns: Returns an error if the RoutingSegment's connection style is not Flanged, otherwise nothing.

◆ SetPreferenceTableId()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetPreferenceTableId ( const UniqueID & uniqueId )

Sets the PreferenceTable of the RoutingSegment.

Parameters

uniqueId The UniqueID of the PreferenceTable.

Returns: Returns an error if the parameter does not identify a PreferenceTable, otherwise nothing.

◆ SetReferenceLineOffsetX()

void ACAPI::MEP::v1::RoutingSegment::SetReferenceLineOffsetX ( double offset )

Sets the offset from the reference line along the X-axis of cross-section's plane.

Parameters

offset The value to be set.

◆ SetReferenceLineOffsetY()

void ACAPI::MEP::v1::RoutingSegment::SetReferenceLineOffsetY ( double offset )

Sets the offset from the reference line along the Y-axis of cross-section's plane.

Parameters

offset The value to be set.

◆ SetRigidSegmentDefaultParameters()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetRigidSegmentDefaultParameters ( const RigidSegmentDefault & rigidSegmentDefault )

Sets the parameters of the RigidSegments.

Parameters

rigidSegmentDefault The Default to be set. One should pay attention to the parameter, it has to belong to the same domain than the object it is called for.

Returns: Returns an error in case of domain mismatch or if the set operation fails for some internal reason, otherwise nothing.

◆ SetWallThickness()

Result< void > ACAPI::MEP::v1::RoutingSegment::SetWallThickness ( double thickness )

Sets the wall thickness of the RoutingSegment.

Parameters

thickness The value to be set.

Returns: Returns an error if the RoutingSegment's wall thickness is controlled by its PreferenceTable, otherwise nothing.

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ Get()

◆ GetAnchor()

◆ GetBeginNodeId()

◆ GetConnectionStyle()

◆ GetCrossSectionHeight()

◆ GetCrossSectionReferenceId()

◆ GetCrossSectionShape()

◆ GetCrossSectionWidth()

◆ GetDomain()

◆ GetEndNodeId()

◆ GetFlangeSize()

◆ GetPreferenceTableId()

◆ GetReferenceLineOffsetX()

◆ GetReferenceLineOffsetY()

◆ GetRigidSegmentDefaultParameters()

◆ GetRigidSegmentIds()

◆ GetRoutingElementId()

◆ GetWallThickness()

◆ Inject()

◆ Modify()

◆ PickUpDefault()

◆ SetAnchor()

◆ SetConnectionStyle()

◆ SetCrossSectionHeight()

◆ SetCrossSectionReferenceId()

◆ SetCrossSectionShape()

◆ SetCrossSectionWidth()

◆ SetFlangeSize()

◆ SetPreferenceTableId()

◆ SetReferenceLineOffsetX()

◆ SetReferenceLineOffsetY()

◆ SetRigidSegmentDefaultParameters()

◆ SetWallThickness()
