ACAPI::MEP::v1::AccessoryDefault Class Reference

The AccessoryDefault contains the necessary non-geometric data for creating an Accessory element. More...

#include <MEPAccessoryDefault.hpp>

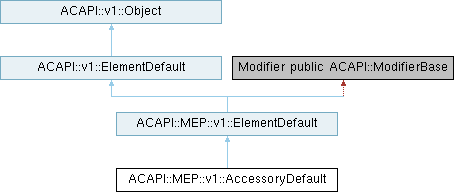

Inheritance diagram for ACAPI::MEP::v1::AccessoryDefault:

Public Member Functions
Result< UniqueID >	Place (const API_Coord3D &coordinate, const Orientation &orientation, const std::optional< API_Guid > &requiredId=std::nullopt) const
	Places an Accessory element based on this Default.
Result< UniqueID >	Place (const UniqueID &portOrNodeId, const std::optional< API_Guid > &requiredId=std::nullopt) const
	Places an Accessory element based on this Default and connects it with the provided Port or RoutingNode, if it is possible.
Public Member Functions inherited from ACAPI::MEP::v1::ElementDefault
std::optional< double >	GetInsulationThickness () const
uint32_t	GetPortCount () const
Domain	GetDomain () const
API_Guid	GetObjectId () const
Result< Domain >	GetDomainOfPort (uint32_t portIndex) const
Result< VentilationPortDefault >	GetVentilationPortDefault (uint32_t portIndex) const
Result< PipingPortDefault >	GetPipingPortDefault (uint32_t portIndex) const
Result< CableCarrierPortDefault >	GetCableCarrierPortDefault (uint32_t portIndex) const
template<class ModifierFunc >
Result< void >	Modify (ModifierFunc &&modifierFunc)
	Executes the given modifier scope in a NotUndoable command.
void	RemoveInsulation ()
	Removes the insulation.
Result< void >	SetInsulationThickness (double insulationThickness)
	Sets the thickness of insulation on the ElementDefault.
void	SetObjectId (const API_Guid &libraryPartId)
	Sets the referenced library part of the ElementDefault.
Public Member Functions inherited from ACAPI::v1::ElementDefault
Result< void >	SetAsArchicadDefault () const
	Sets the locally prepared Default settings to the Archicad Default.
Public Member Functions inherited from ACAPI::v1::Object
	Object (std::shared_ptr< Impl::ObjectImpl > impl)
	Constructs a new object.
const API_Token &	GetToken () const
	Get the token for this object.

Friends
class	ACAPI::Impl::ObjectCreator
Result< AccessoryDefault >	CreateAccessoryDefault (Domain)
	Creates an AccessoryDefault.

Additional Inherited Members
Protected Member Functions inherited from ACAPI::MEP::v1::ElementDefault
	ElementDefault (std::shared_ptr< Impl::IElementDefaultImpl > impl)
	Constructs an ElementDefault with the given element default implementation.
	Modifier (ElementDefault &parent)
	Constructs a Modifier with the given parent ElementDefault.
Protected Member Functions inherited from ACAPI::v1::ElementDefault
	ElementDefault (std::shared_ptr< Impl::ElementDefaultImpl > impl)
	Constructs a new ElementDefault.
Protected Member Functions inherited from ACAPI::v1::Object
	~Object ()
	Default destructor.
Protected Attributes inherited from ACAPI::v1::Object
std::shared_ptr< Impl::ObjectImpl >	mImpl
	Impl object given by constructor.

Detailed Description

The AccessoryDefault contains the necessary non-geometric data for creating an Accessory element.

Since

Archicad 27

Example code snippet from Test / New MEP

Placement

    {
        auto ductAccessoryDefault = CreateAccessoryDefault (Domain::Ventilation);
        if (ductAccessoryDefault.IsErr ())
            return ductAccessoryDefault.UnwrapErr ().kind;

        ACAPI::Result<UniqueID> accessoryId = ductAccessoryDefault->Place ({ 0.0, 13.0, 0.0 }, { { -1.0, 0.0, 0.0 }, { 0.0, 1.0, 0.0 } }, GenerateAPIGuid ());
        if (accessoryId.IsErr ())
            return accessoryId.UnwrapErr ().kind;

        ACAPI_WriteReport ("Ventilation Accessory placed successfully", false);
    }

    {
        auto pipeAccessoryDefault = CreateAccessoryDefault (Domain::Piping);
        if (pipeAccessoryDefault.IsErr ())
            return pipeAccessoryDefault.UnwrapErr ().kind;

        ACAPI::Result<UniqueID> accessoryId = pipeAccessoryDefault->Place ({ 10.0, 13.0, 0.0 }, { { -1.0, 0.0, 0.0 }, { 0.0, 1.0, 0.0 } }, GenerateAPIGuid ());
        if (accessoryId.IsErr ())
            return accessoryId.UnwrapErr ().kind;

        ACAPI_WriteReport ("Piping Accessory placed successfully", false);
    }

Member Function Documentation

Place() [1/2]

Result< UniqueID > ACAPI::MEP::v1::AccessoryDefault::Place	(	const API_Coord3D &	coordinate,
		const Orientation &	orientation,
		const std::optional< API_Guid > &	requiredId = std::nullopt
	)		const

Places an Accessory element based on this Default.

The implementation creates an Undoable Command Scope before executing the placement. This Command Scope is automatically closed after execution. When someone would like to group the placement of several RoutingElements and/or MEP elements together, it is recommended to create a single Command Scope. Doing this prevents the opening and closing of a Command Scope for every single created RoutingElement and/or MEP element, therefore the performance should be improved.

Parameters

coordinate	The coordinate where the Accessory will be placed.
orientation	The orientation of the Accessory, which is based on a direction vector and a rotation vector.
requiredId	The guid to be set for the Accessory - optional parameter

Returns

If executed with success, returns the newly placed Accessory's uniqueId, otherwise Error.

Place() [2/2]

Result< UniqueID > ACAPI::MEP::v1::AccessoryDefault::Place	(	const UniqueID &	portOrNodeId,
		const std::optional< API_Guid > &	requiredId = std::nullopt
	)		const

Places an Accessory element based on this Default and connects it with the provided Port or RoutingNode, if it is possible.

The implementation creates an Undoable Command Scope before executing the placement. This Command Scope is automatically closed after execution. When someone would like to group the placement of several RoutingElements and/or MEP elements together, it is recommended to create a single Command Scope. Doing this prevents the opening and closing of a Command Scope for every single created RoutingElement and/or MEP element, therefore the performance should be improved.

Parameters

portOrNodeId	The id of a Port or RoutingNode, which provides the placed Accessory's position and orientation.
requiredId	The guid to be set for the Accessory - optional parameter

Returns

If executed with success, returns the newly placed Terminal's uniqueId, otherwise Error.

Friends And Related Symbol Documentation

CreateAccessoryDefault

Result< AccessoryDefault > CreateAccessoryDefault ( Domain  domain )

friend

Creates an AccessoryDefault.

Parameters

domain

The Domain of the requested AccessoryDefault. It can be ventilation or piping.

Returns

If able, returns a copy of Archicad's current Default of the Accessory tool for the domain defined by the parameter, otherwise Error (for ex. if domain is cable carrier).
